31.1. MMC_PRED_OPEN_LOOP

31.1.1. Overview

The MMC open-loop prediction project demonstrated the function of MMC to adjust the motion parameters and the time stamp of the Motor system according to the set conditions, and predict and generate the motion trajectory. MMC provides the position information of the predicted trajectory to QEO, which can generate signals such as ABZ and PWM, which can be used to drive the motor.

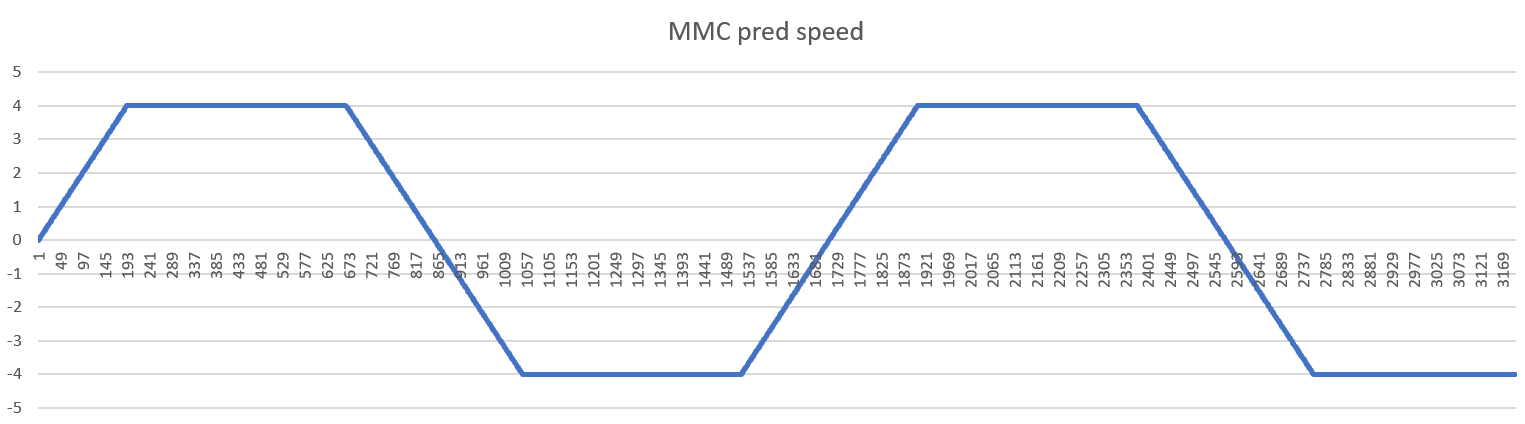

This example program demonstrates the following motion trajectory: -The initial speed is 0, the acceleration is 1r/s, the forward uniform acceleration motion -When the speed reaches 4r/s, adjust the acceleration to 0, move forward at a constant speed -Position reaches 48 circles, adjust the acceleration to -1 r/s, accelerate the motion uniformly in the opposite direction -When the speed reaches -4r/s, adjust the acceleration to 0, move in reverse at a uniform speed -Position reaches 8 circles, adjust the acceleration to 1r/s, accelerate forward uniformly

31.1.2. Board Setting

Please refer to Pin Description

  • Observe the ABZ pins of QEO or the PWM pins.

  • Connect the PWM pins to the HPMicro’s stepper drive board to drive the stepper motor.

31.1.3. Running the example

When the project runs correctly, the serial port terminal will receive the following information:

MMC example
MMC openloop pred postion to QEO
MMC pred speed value:
0.00198174
0.02289963
0.04381561
0.06473351
0.08565141
0.10656739
0.12748528
0.14840126
0.16931724
0.19023324
0.21115112
0.23206710
0.25298310
0.27389908
0.29481698
0.31573296
0.33664896
0.35756684
0.37848280
0.39939880
0.42031668
0.44123268
0.46214868
0.48306656
0.50398256
0.52489852
0.54581644
0.56673240
0.58764840
0.60856628
0.62948228
0.65040016
0.67131616
0.69223216
0.71314808
0.73406408
0.75498200
0.77589800
0.79681400
0.81773184
0.83864784
0.85956384
0.88048168
0.90139768
0.92231560
0.94323160
0.96414760
0.98506352
1.00598144
1.02689743
1.04781341
1.06873131
1.08964729
1.11056328
1.13147926
1.15239716
1.17331314
1.19422912
1.21514512
1.23606300
1.25697898
1.27789498
1.29881286
1.31972886
1.34064676
1.36156272
1.38248064
1.40339660
1.42431260
1.44522856
1.46614648
1.48706244
1.50798036
1.52889632
1.54981424
1.57073020
1.59164620
1.61256216
1.63348008
1.65439604
1.67531208
1.69622992
1.71714592
1.73806384
1.75897976
1.77989768
1.80081368
1.82172968
1.84264752
1.86356352
1.88448144
1.90539744
1.92631344
1.94723128
1.96814728
1.98906520
2.00998115
2.03089714
2.05181503
2.07273102
2.09364700
2.11456299
2.13547897
2.15639687
2.17731476
2.19823074
2.21914672
2.24006462
2.26098060
2.28189660
2.30281448
2.32373046
2.34464644
2.36556436
2.38648032
2.40739632
2.42831420
2.44923020
2.47014616
2.49106216
2.51198004
2.53289604
2.55381392
2.57472992
2.59564592
2.61656380
2.63747980
2.65839768
2.67931368
2.70023152
2.72114752
2.74206352
2.76298144
2.78389736
2.80481528
2.82573128
2.84664920
2.86756512
2.88848112
2.90939904
2.93031504
2.95123288
2.97214888
2.99306680
3.01398277
3.03489875
3.05581665
3.07673263
3.09765053
3.11856651
3.13948250
3.16039848
3.18131638
3.20223236
3.22314834
3.24406624
3.26498222
3.28589820
3.30681610
3.32773208
3.34864808
3.36956596
3.39048196
3.41139984
3.43231584
3.45323372
3.47414972
3.49506568
3.51598360
3.53689956
3.55781744
3.57873344
3.59965132
3.62056732
3.64148332
3.66240120
3.68331720
3.70423320
3.72514912
3.74606704
3.76698304
3.78790096
3.80881688
3.82973480
3.85065080
3.87156864
3.89248464
3.91340256
3.93431856
3.95523640
3.97615240
3.99706840
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
4.00000000
3.98914720
3.96822928
3.94731328
3.92639544
3.90547944
3.88456152
3.86364552
3.84272768
3.82181168
3.80089568
3.77997776
3.75905992
3.73814392
3.71722600
3.69631008
3.67539408
3.65447616
3.63356020
3.61264420
3.59172632
3.57081032
3.54989244
3.52897644
3.50805856
3.48714256
3.46622656
3.44530868
3.42439272
3.40347480
3.38255884
3.36164092
3.34072496
3.31980706
3.29889106
3.27797318
3.25705718
3.23613930
3.21522332
3.19430732
3.17339134
3.15247345
3.13155746
3.11063957
3.08972359
3.06880760
3.04788971
3.02697372
3.00605583
2.98513984
2.96422192
2.94330600
2.92239000
2.90147400
2.88055608
