58.10. SEI Slave: Simulate HIPERFACE Encoder

58.10.1. Overview

  • This demo shows SEI interface simulate Hiperface encoder and generate position data, then print related information by uart console.

  • The simulated Hiperface encoder is SKM36-HFA0-K02。

58.10.2. Configuration

  • Prepare a USB to 485 module

  • Connect SEI pins DATA_P/DATA_N to 485 module pins A/B

58.10.3. Running the example

  • Download and run the program in the development board.

  • Use PC serial debugging assistant to communicate with the development board, obtain simulated encoder data.

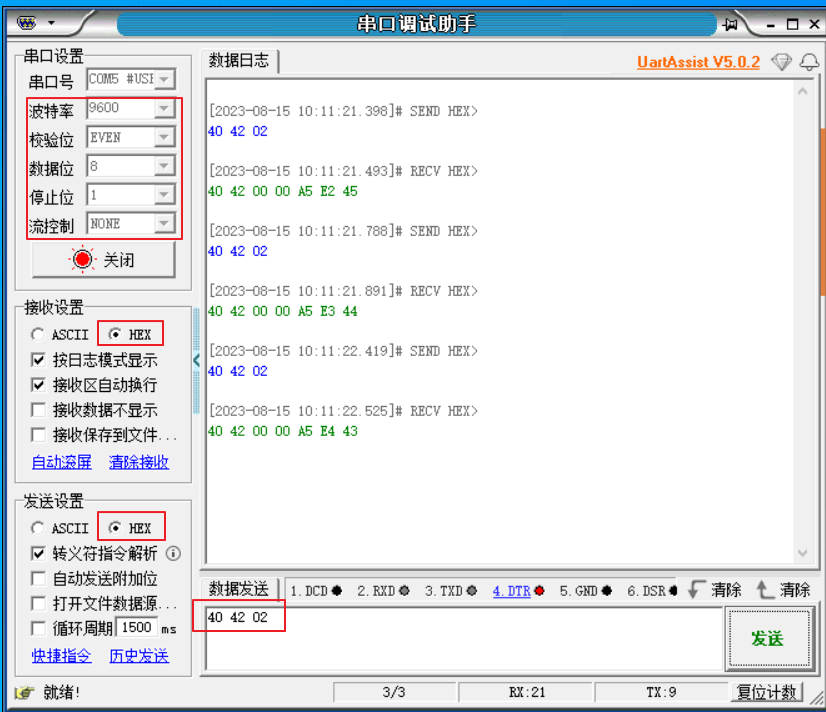

  • Set PC serial debugging assistant: baudrate-9600, startbits-1, databits-8, stopbits-1, paritybits-even. Then send data: 0x40 0x42 0x02, the development board will response. sei_slave_hiperface.png

  • Meanwhile, the console shows the following log. POS’s value increasing by 1 each sample.

----------------------------------------------------------------------
$$\   $$\ $$$$$$$\  $$\      $$\ $$\
$$ |  $$ |$$  __$$\ $$$\    $$$ |\__|
$$ |  $$ |$$ |  $$ |$$$$\  $$$$ |$$\  $$$$$$$\  $$$$$$\   $$$$$$\
$$$$$$$$ |$$$$$$$  |$$\$$\$$ $$ |$$ |$$  _____|$$  __$$\ $$  __$$\
$$  __$$ |$$  ____/ $$ \$$$  $$ |$$ |$$ /      $$ |  \__|$$ /  $$ |
$$ |  $$ |$$ |      $$ |\$  /$$ |$$ |$$ |      $$ |      $$ |  $$ |
$$ |  $$ |$$ |      $$ | \_/ $$ |$$ |\$$$$$$$\ $$ |      \$$$$$$  |
\__|  \__|\__|      \__|     \__|\__| \_______|\__|       \______/
----------------------------------------------------------------------
SEI slave hiperface sample
Started sei engine!
ADDR:0x40, CMD:0x42, POS:0xa5a5, CRC:0x40, sample_tm1:301346678, sample_tm2:0, sample_interval:1883416 us
ADDR:0x40, CMD:0x42, POS:0xa5a6, CRC:0x80, sample_tm1:333346343, sample_tm2:301346678, sample_interval:199997 us
ADDR:0x40, CMD:0x42, POS:0xa5a7, CRC:0x0, sample_tm1:365346007, sample_tm2:333346343, sample_interval:199997 us
ADDR:0x40, CMD:0x42, POS:0xa5a8, CRC:0xf0, sample_tm1:397345672, sample_tm2:365346007, sample_interval:199997 us
ADDR:0x40, CMD:0x42, POS:0xa5a9, CRC:0x70, sample_tm1:429345337, sample_tm2:397345672, sample_interval:199997 us
ADDR:0x40, CMD:0x42, POS:0xa5aa, CRC:0xb0, sample_tm1:461345002, sample_tm2:429345337, sample_interval:199997 us
ADDR:0x40, CMD:0x42, POS:0xa5ab, CRC:0x30, sample_tm1:493344667, sample_tm2:461345002, sample_interval:199997 us
ADDR:0x40, CMD:0x42, POS:0xa5ac, CRC:0xd0, sample_tm1:525344332, sample_tm2:493344667, sample_interval:199997 us
