42.6. UAC2 Speaker and Microphone

42.6.1. Overview

This example project shows USB hid generic transfers

• PC transmits a HID report to MCU, and then MC send it back to PC

42.6.2. Board Setting

• Connect a USB port on PC to the PWR DEBUG port on the development board with a USB Type-C cable

• Connect a USB port on PC to one of USB port on the development board with a USB Type-C cable

• Connect a speaker to the DAO interface on the development board

42.6.3. Project Configuration

• File CMakeLists.txt：

  When BOARD_DEVICE_RHPORT_NUM is defined as 0, it means to use USB0.

  When BOARD_DEVICE_RHPORT_NUM is defined as 1, it means to use USB1.

• The property of USB device can be configured by “tusb_config.h” or “CMakeListx.txt”

42.6.4. Running the example

When the project runs correctly

• Confirm the audio settings:

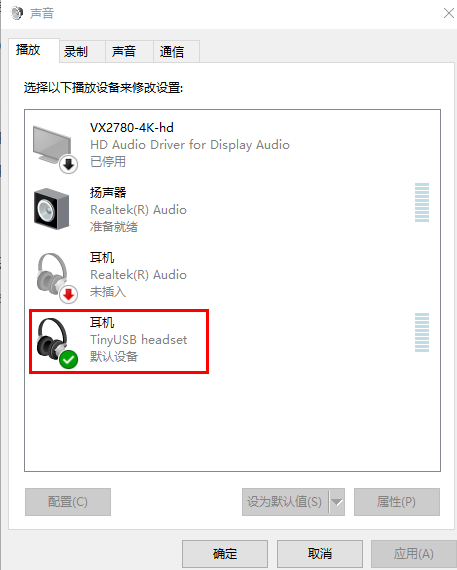

  1. Set “TinyUSB headset” as the default play device

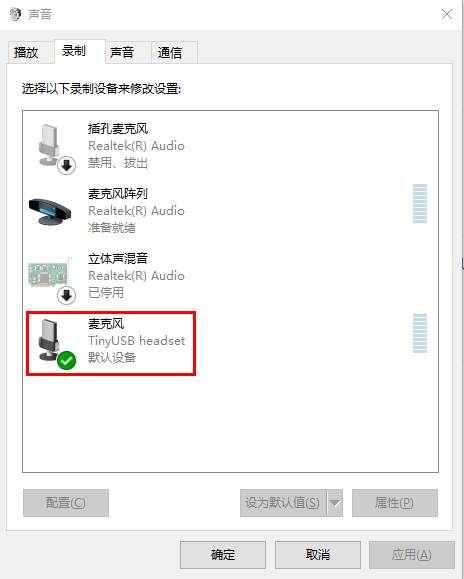

  2. Set “TinyUSB headset” as the default recording device



• Play

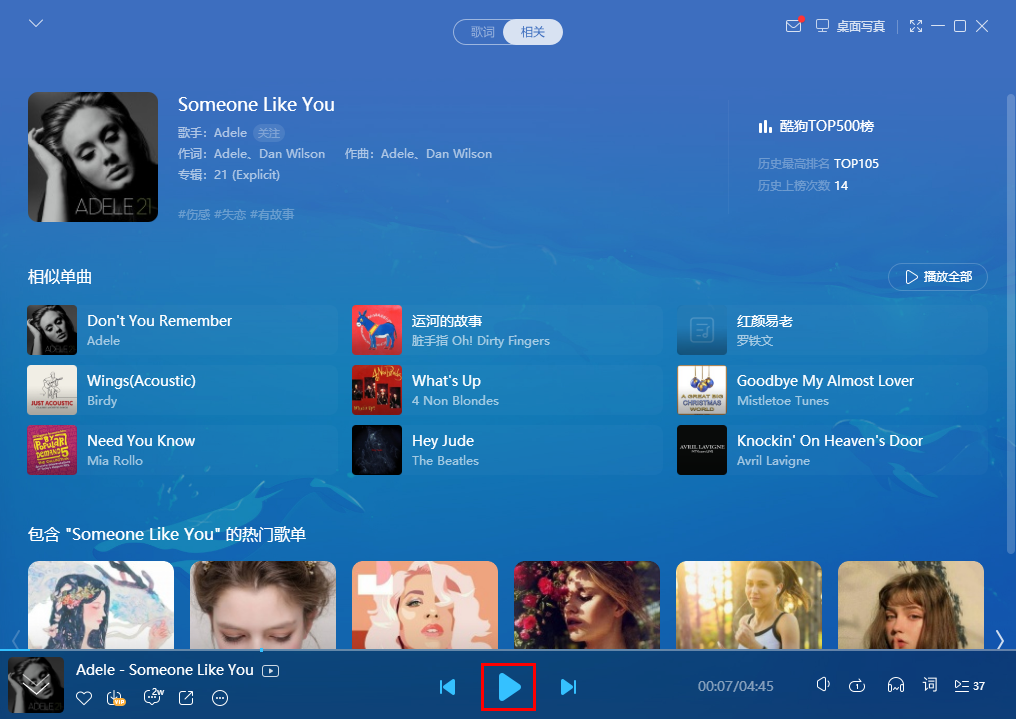

  1. Start a music player on PC and choose a music song, and then click “Play” button



  2. MCU plays music by speaker as receiving audio data from PC.

• Recording

  1. Stop the music player on PC

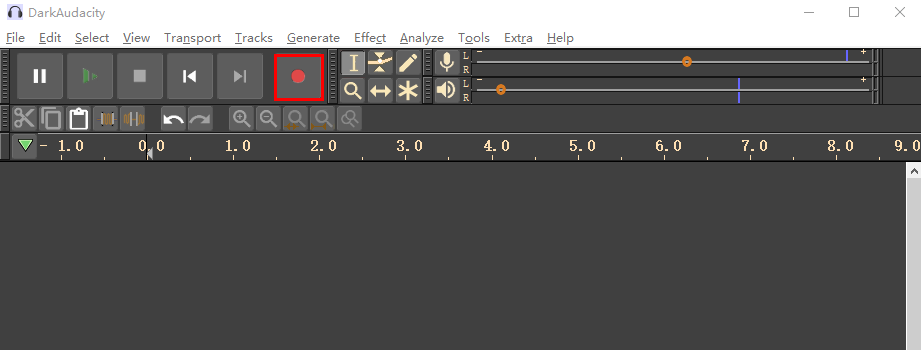

  2. Start a recording tool and click “Record” button, and at the same time play a music song by another player device(e.g. mobile phone)

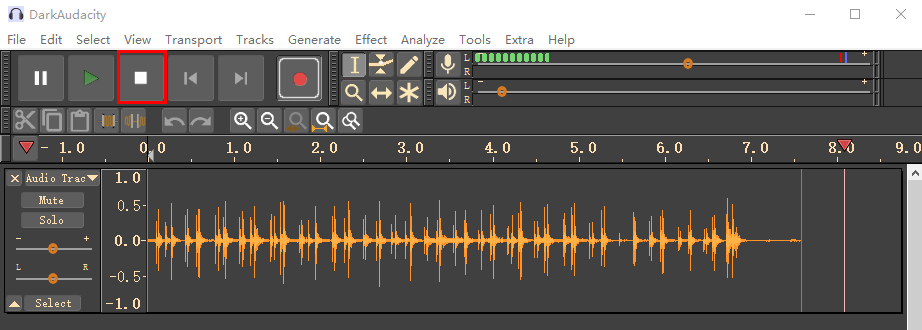

  3. Click “Stop” button after recording for a while

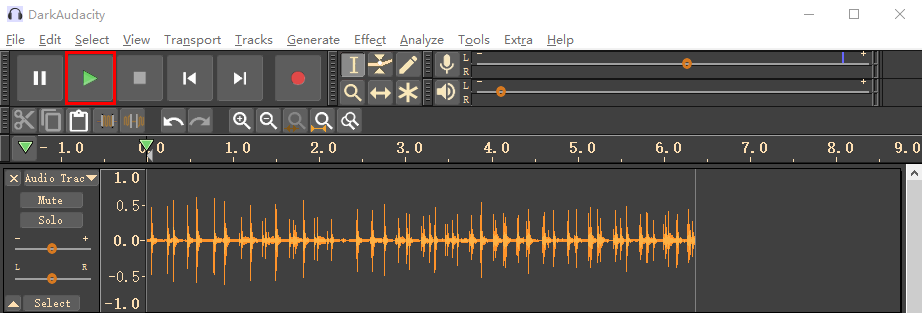

  4. Click “Play” button



  5. MCU Plays audio by speaker on DAO interface
