12.9. ECAT_IO

12.9.1. 1. Overview

The ECAT_IO example demonstrates the steps to implement an ECAT digital IO slave station with the ESC peripheral and the slave stack code (SSC).

This routine program supports initializing the EEPROM data(without limiting the use of Flash simulation EEPROM or actual EEPROM) of the ESC, simplifying the process of updating the ESC’s EEPROM.

If the program code contains EEPROM data (eeprom.h) generated by the SSC Tool, it will check the data stored in the ESC’s EEPROM and update it based on conditions.

If the checksum of the EtherCAT Slave Controller Configuration Area (the first 8 words) of the EEPROM failed, the EEPROM will be initialized with the data from eeprom.h.

If the checksum of the EtherCAT Slave Controller Configuration Area (the first 8 words) of the EEPROM succeeds, will verify the Product Code and Revision Code in the EEPROM data.

When the Product Code differs or the Revision Number in eeprom.h is greater than the Revision Number of the currently stored EEPROM data, the EEPROM will be initialized with the data from eeprom.h.

This method can solve the problem of checksum failure caused by EEPROM being empty during initial use, it will initialize EEPROM. During program upgrades, if the Revision Number in the eeprom.h included in the new program code is greater than the Revision Number of the currently stored EEPROM data, the EEPROM will be initialized with the eeprom.h, eliminating the need to update the EEPROM through master station tools such as TwinCAT.

12.9.2. 2. Prepare

12.9.2.1. 2.1 Hardware

  • Development board with ECAT, please refer to Pin Description of the development board. Check the ECAT network port/RUN LED/ERR LED and other hardware

  • PC with Ethernet port

12.9.2.2. 2.2 Software

  • TwinCAT3.1(Build 4024.56)

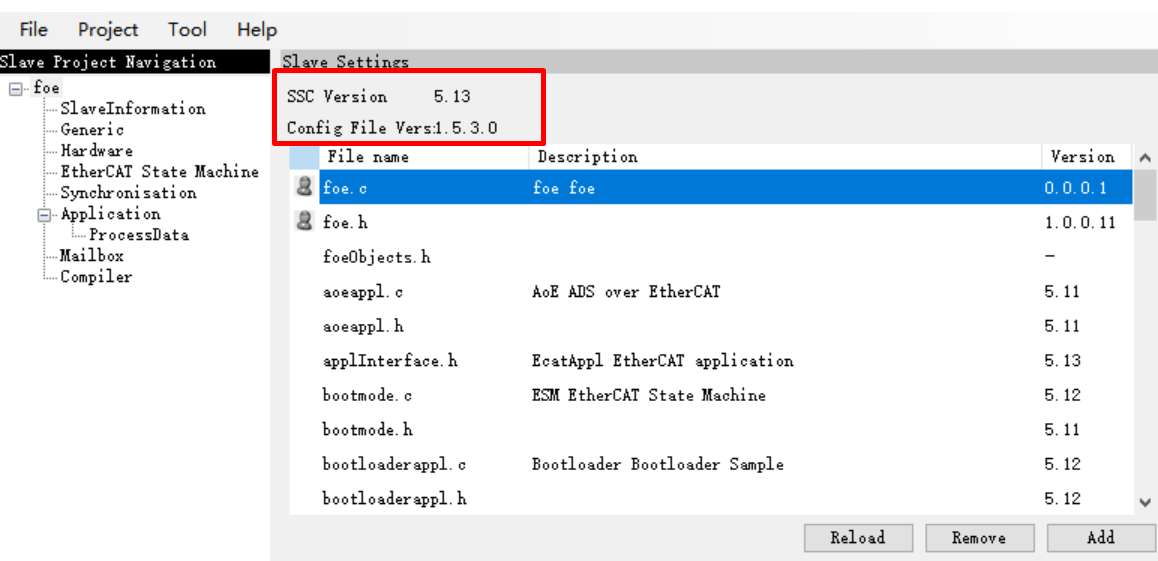

  • SSC Tool(SSC Version: 5.13; Config File Vers: 1.5.3.0)

12.9.3. 3. Project Setting

12.9.3.1. 3.1 EEPROM Emulation Setting

  • The default setting is to use Flash to simulate EEPROM

  • Note : Please allocate appropriate flash space for FLASH-EEPROM content to avoid conflicts with other flash contents

12.9.3.2. 3.2 Using actual EEPROM

  • Set the “Hardware” attribute “ESC_EEPROM_EMULATION = 0” in SSC Tool when generating code, then regenerate the slave protocol stack code.

  • Comment out the “#define SET_EEPROM_PTR pEEPROM = aEepromData;” line in the generated protocol stack code ecatappl.c to resolve compilation errors.

  • In the file CMakeLists.txt, set “set(CONFIG_EEPROM_EMULATION 0)” and rebuild the project.

12.9.4. 4. Generate EtherCAT slave stack code

Due to licensing issues, HPMSDK does not provide EtherCAT slave protocol stack code (SSC). Users have download the SSC Tool from Beckoff’s official website and generate the slave stack code according to the steps.

12.9.4.1. 4.1. Download SSC Tool

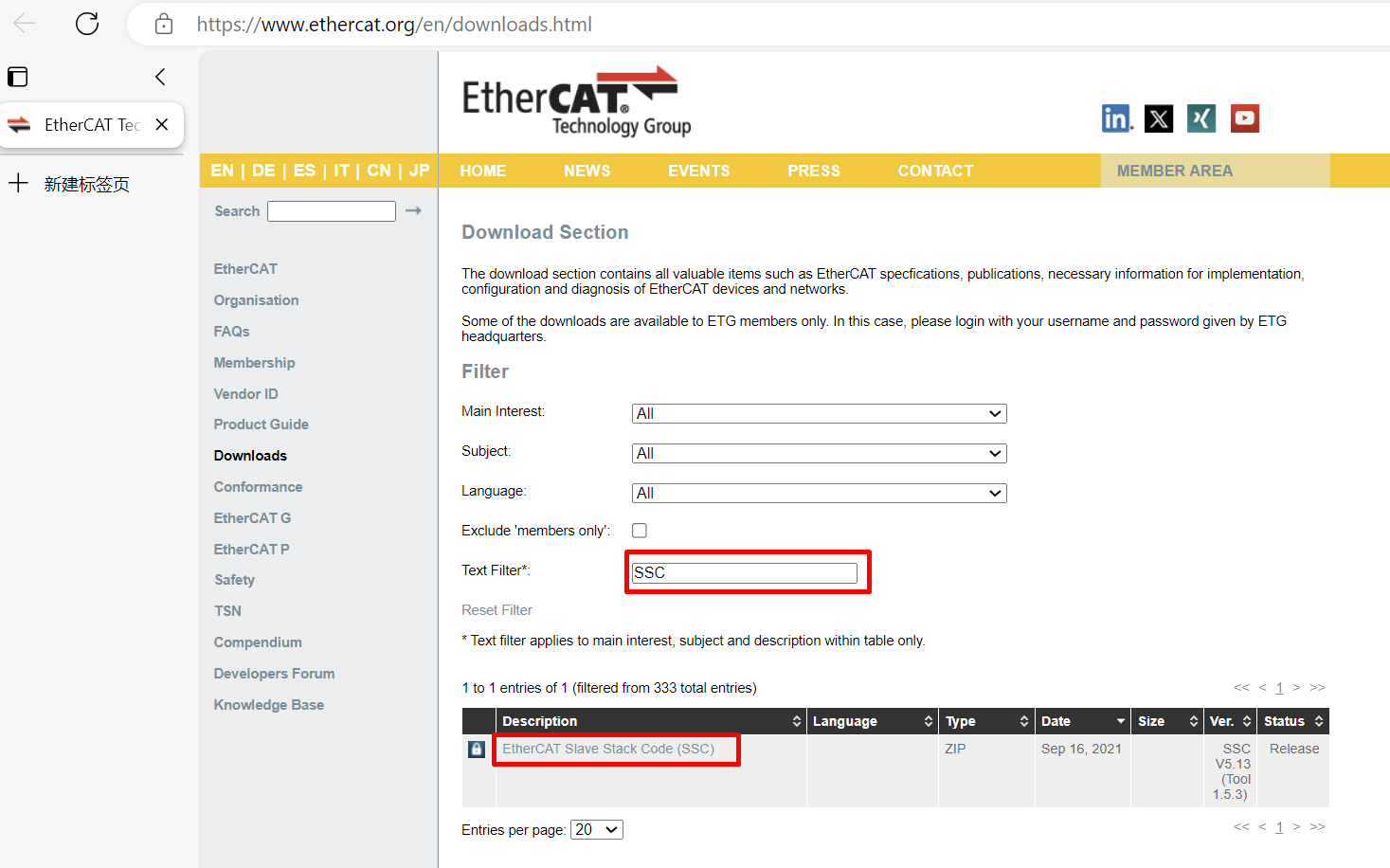

  1. Enter ETG Download website , input “SSC” to filter resource.

Note

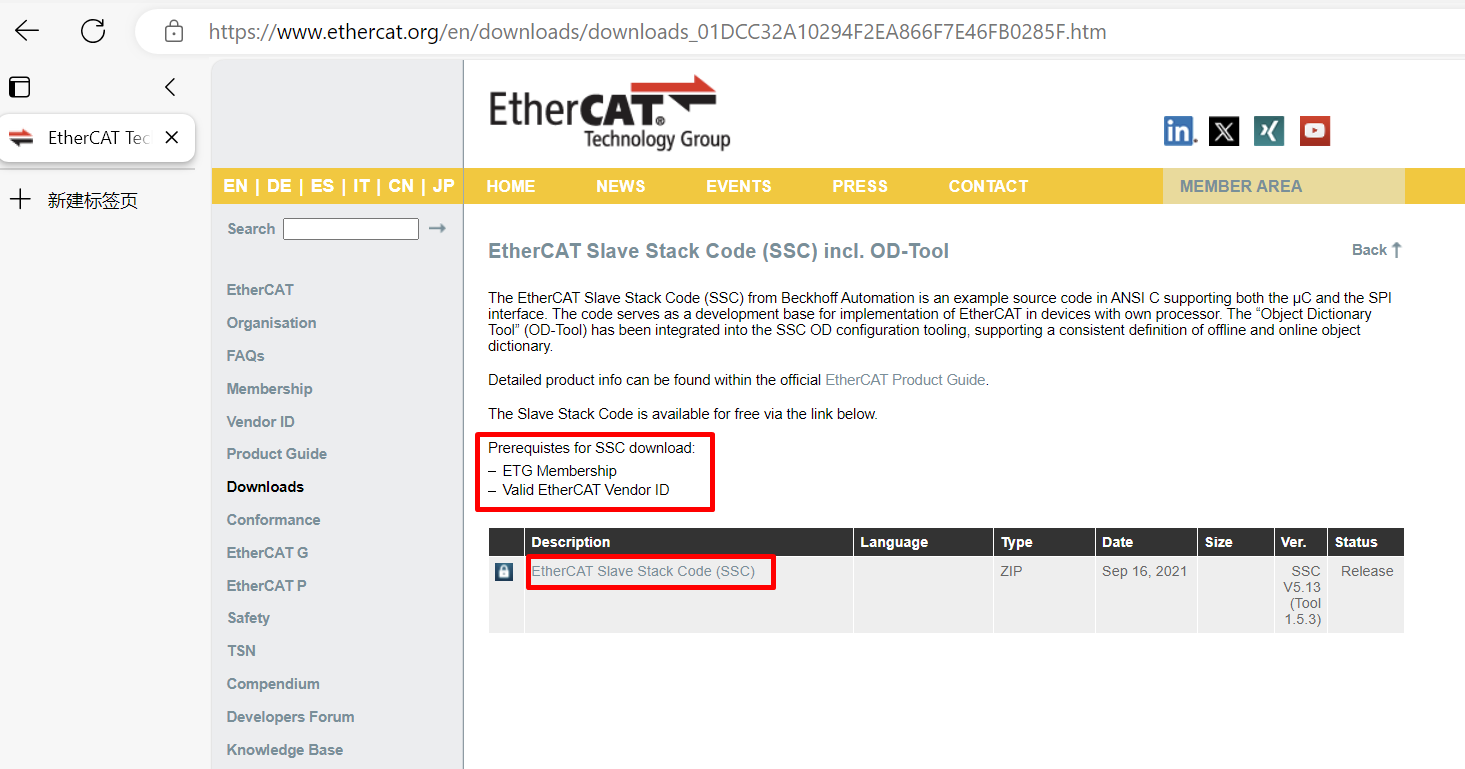

To download, you need to provide an ETG member account and a valid vendor ID**

  1. Download and install SSC Tool

12.9.4.2. 4.2 SSC Tool import configuration files

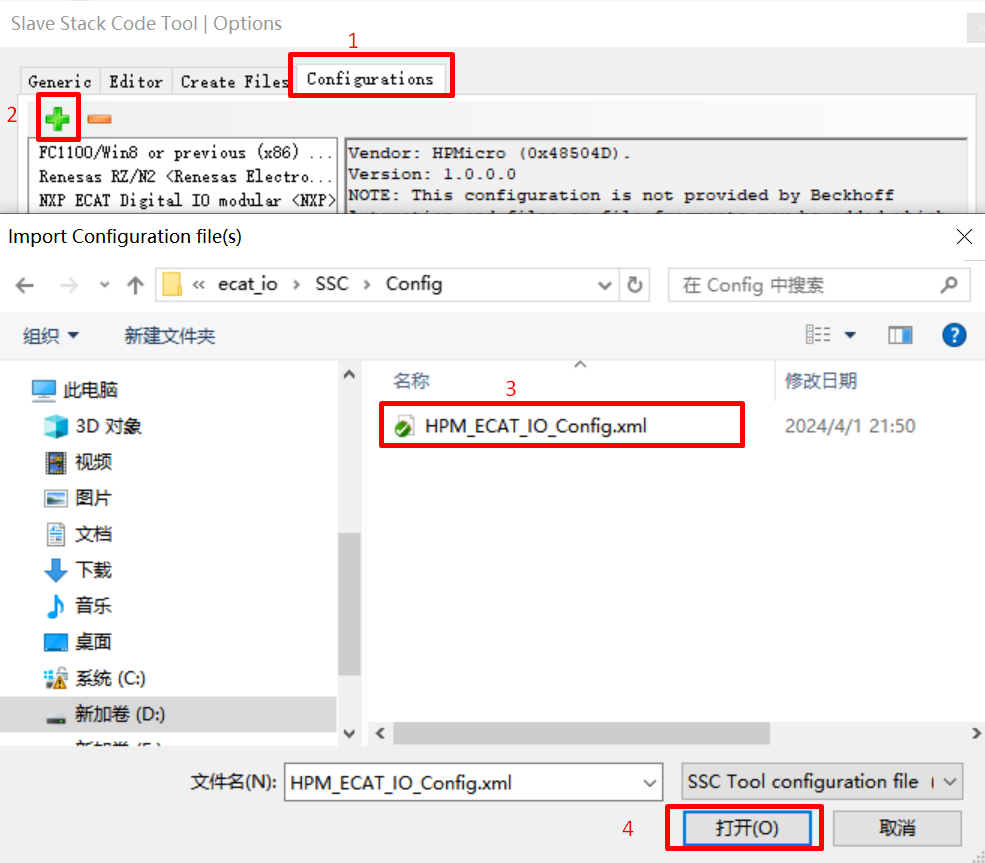

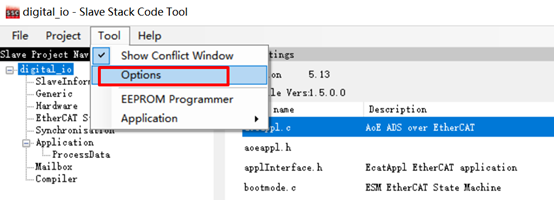

  1. Open SSC Tool, click Tool->Options

  1. click Configurations, import configuration file(<hpm_sdk>/samples/ethercat/ecat_io/SSC/Config/HPM_ECAT_IO_Config.xml)

12.9.4.3. 4.3 SSC Tool create new project

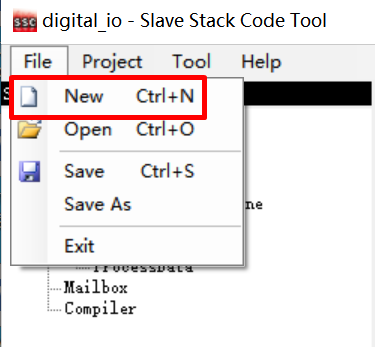

  1. click File->New

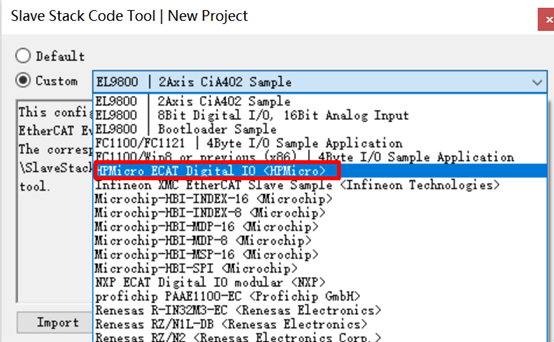

  1. Click Custom option, and select HPMicro ECAT Digital IO <HPMicro> from the drop-down list

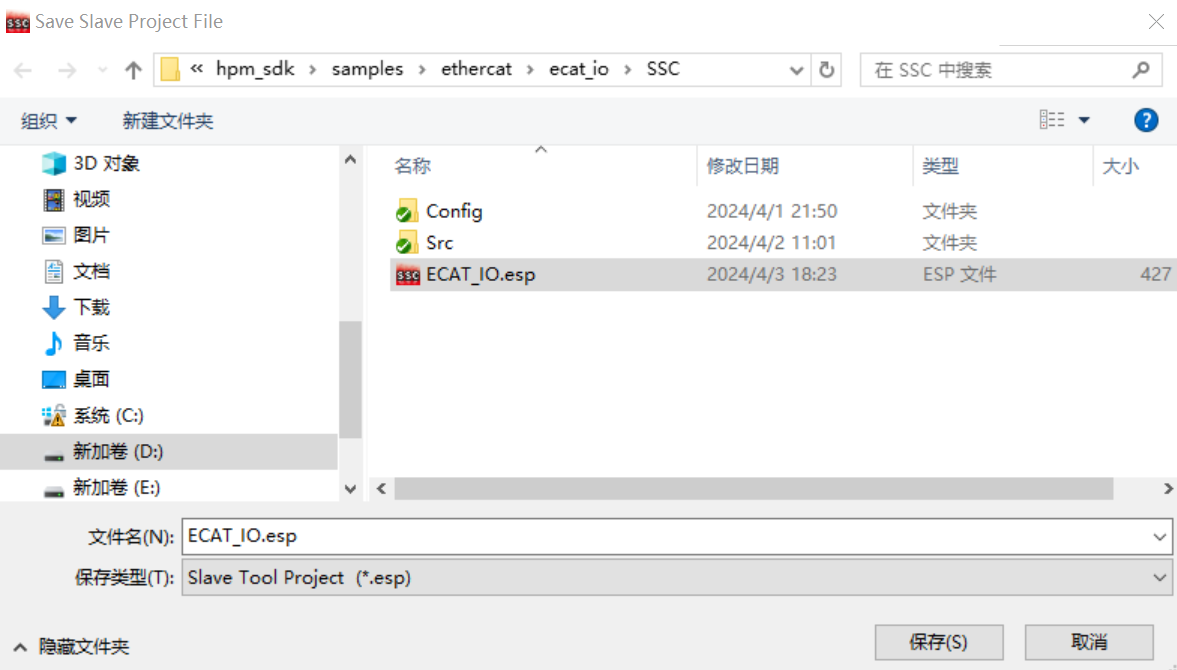

  1. Save project, specify the file path

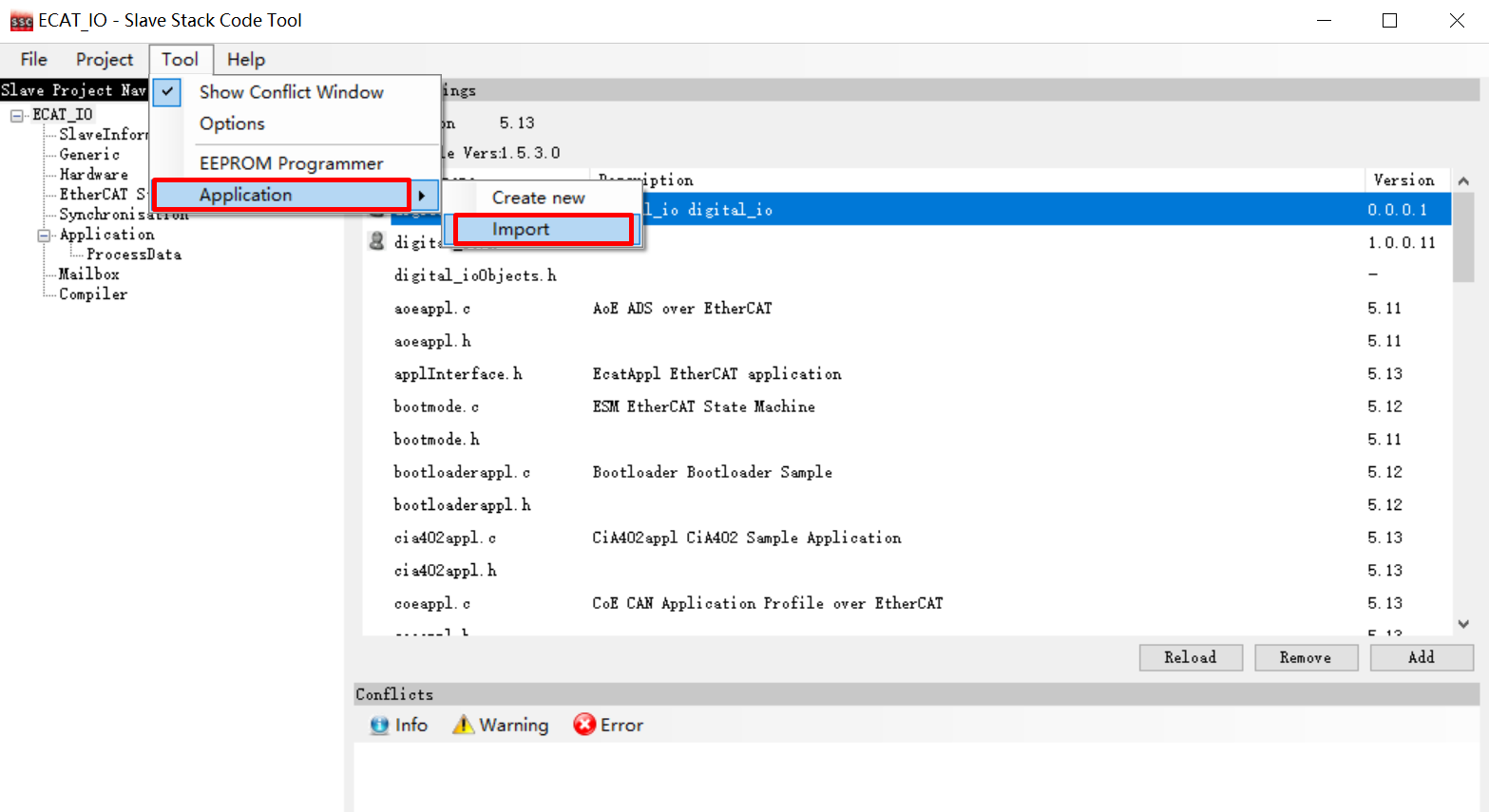

  1. import application

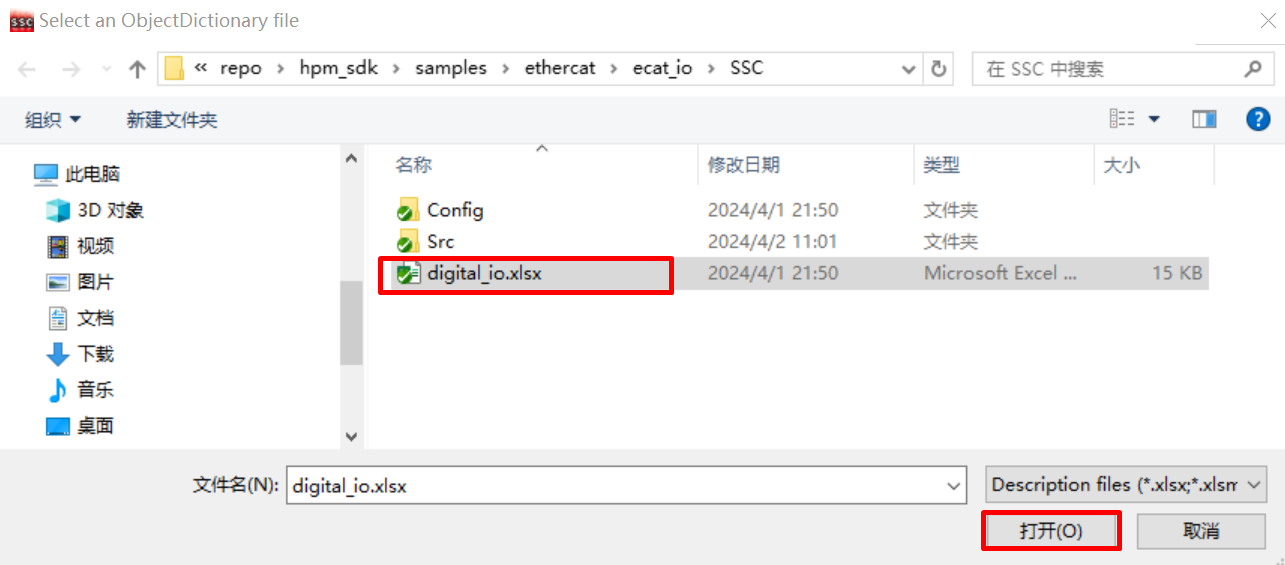

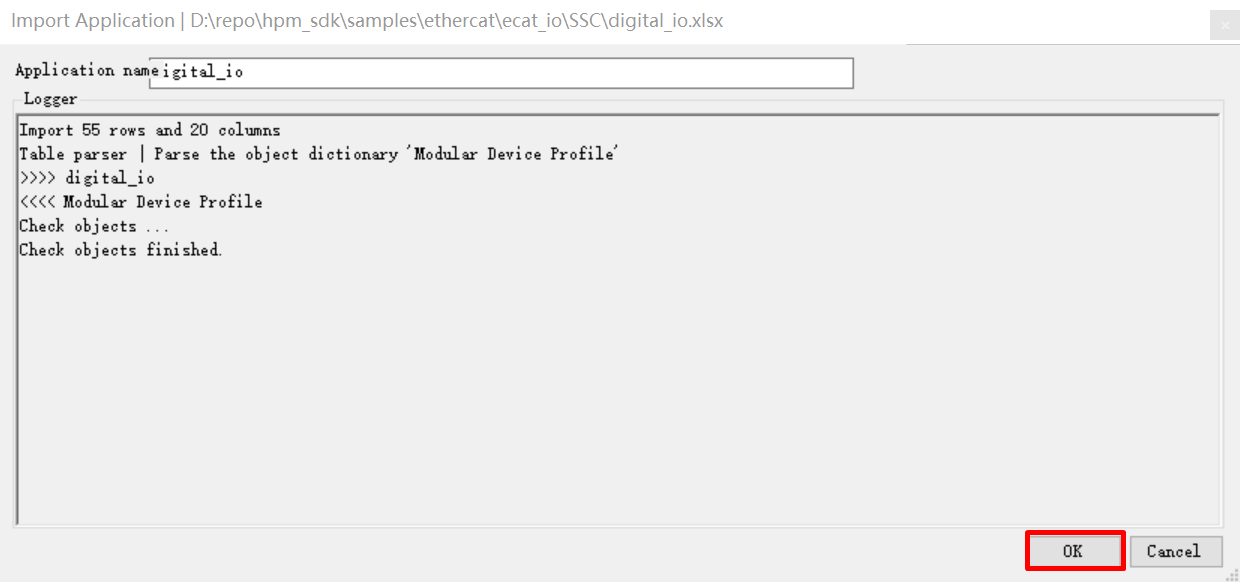

  • Click Tool->Application->Import , Import <hpm_sdk>/samples/ethercat/ecat_io/SSC/digital_io.xlsx

  • Click OK

12.9.4.4. 4.4 Create slave stack files

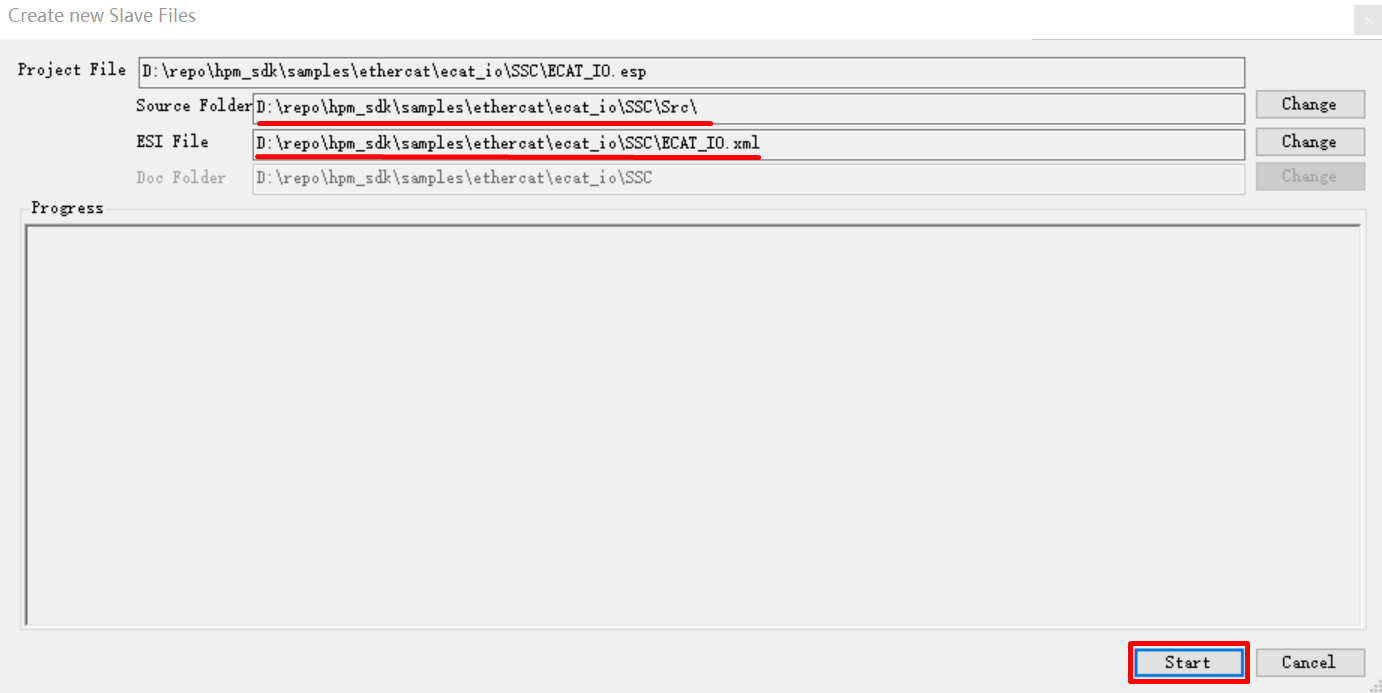

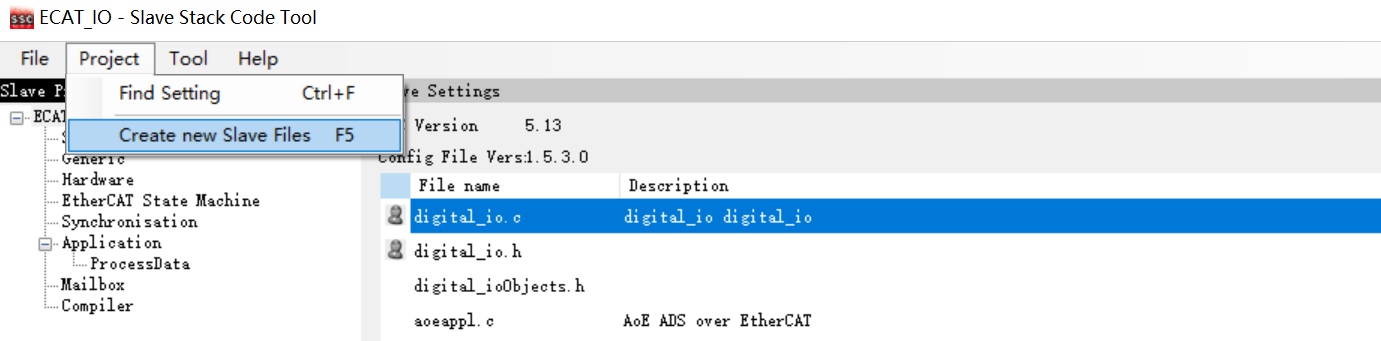

  1. Click Project->Create new Slave Files

  1. Specify the output path, the output source folder have to set to <ecat_io sample path>/SSC/Src, if other path, have to copy generated SRC folder to <ecat_io sample path>/SSC/Src

12.9.4.5. 4.5 SSC code change

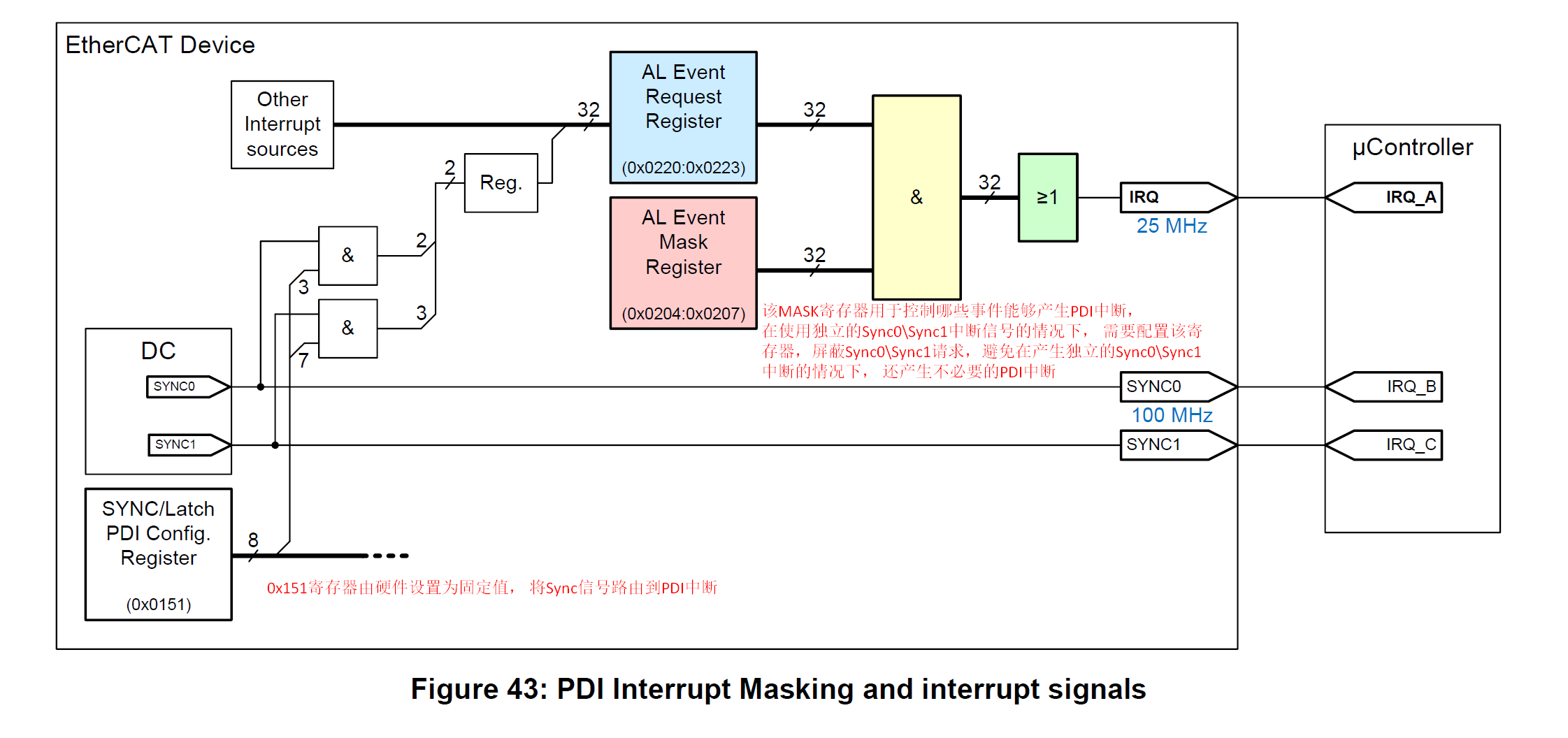

ESC IP supports generating independent Sync0 Sync1 interrupts, and Sync0 Sync1 requests can also trigger PDI interrupts. To avoid unnecessary PDI interrupts triggered by Sync0 Sync1 requests when using independent Sync0 Sync1 interrupts, AL Event Mask Register (0x204) needs to be set for masking

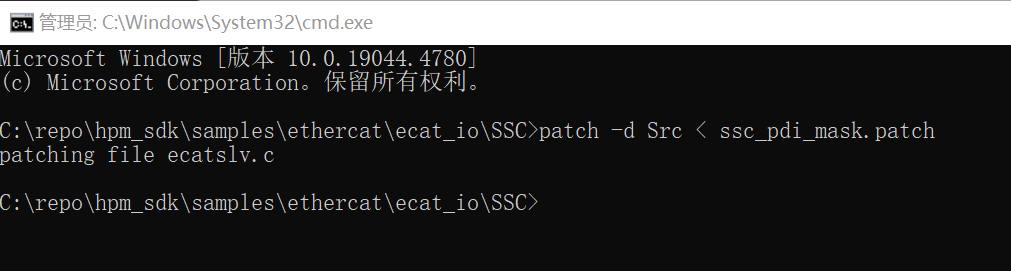

Execute in the command line window under the SSC directory：patch -d Src < ssc_pdi_mask.patch

Note: On HPM5E00, hardware supports setting sync0 and sync1 to not trigger PDI interrupts, so there is no need to use this patch again.

Note ：If the patch command is not installed on your PC, you will need to install ver.2.5.9 or a laterversion of GNU patch. If it is already installed, skip this step. Download the patch command (currently ver.2.5.9) from the following Web page and store “patch.exe” in a folder on a path that makes the file executable from the command prompt. http://gnuwin32.sourceforge.net/packages/patch.htm

12.9.5. 5. TwinCAT Project setting

12.9.5.1. 5.1. Add ESI file

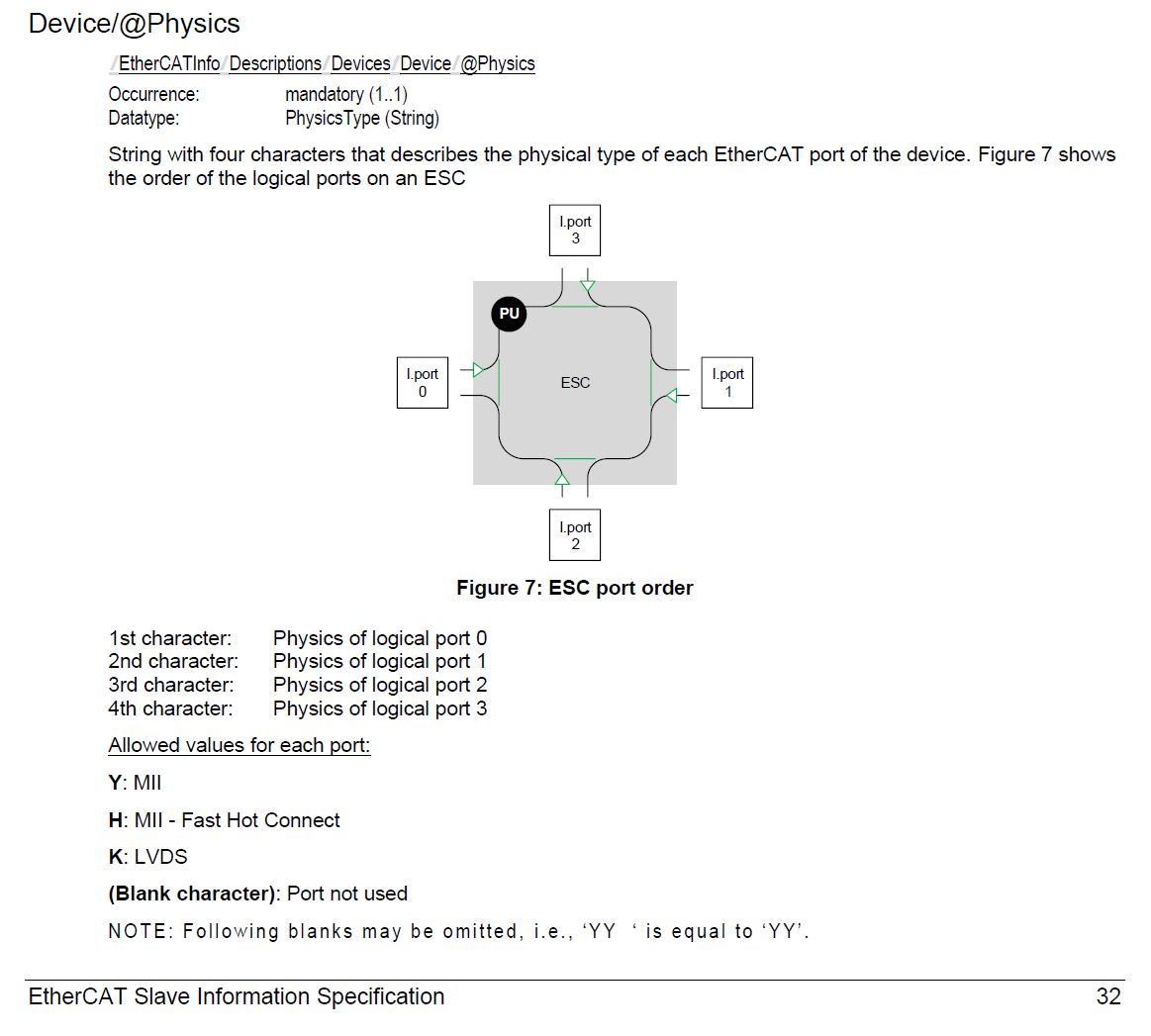

  1. Please modify the device attributes in generated ESI ( ECAT-IO.xml ) by SSC tool according to the actual number of ports(<Device Physics=”YY”>), The default attribute generated in ESI is “YY”, indicating that Port0 and Port1 are implemented. If Port0, Port1, and Port2 are actually implemented, please manually modify the attribute to “YYY”.

  1. Copy the ESI( ECAT-IO.xml ) to TwinCAT( C:/TwinCAT/3.1/Config/Io/EtherCAT ).

12.9.5.2. 5.2 Create Project

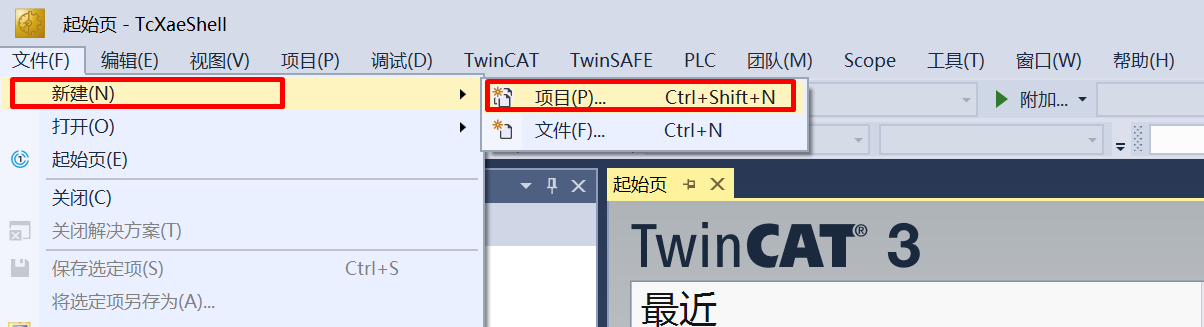

  1. Open TwinCAT，click File->New->Project

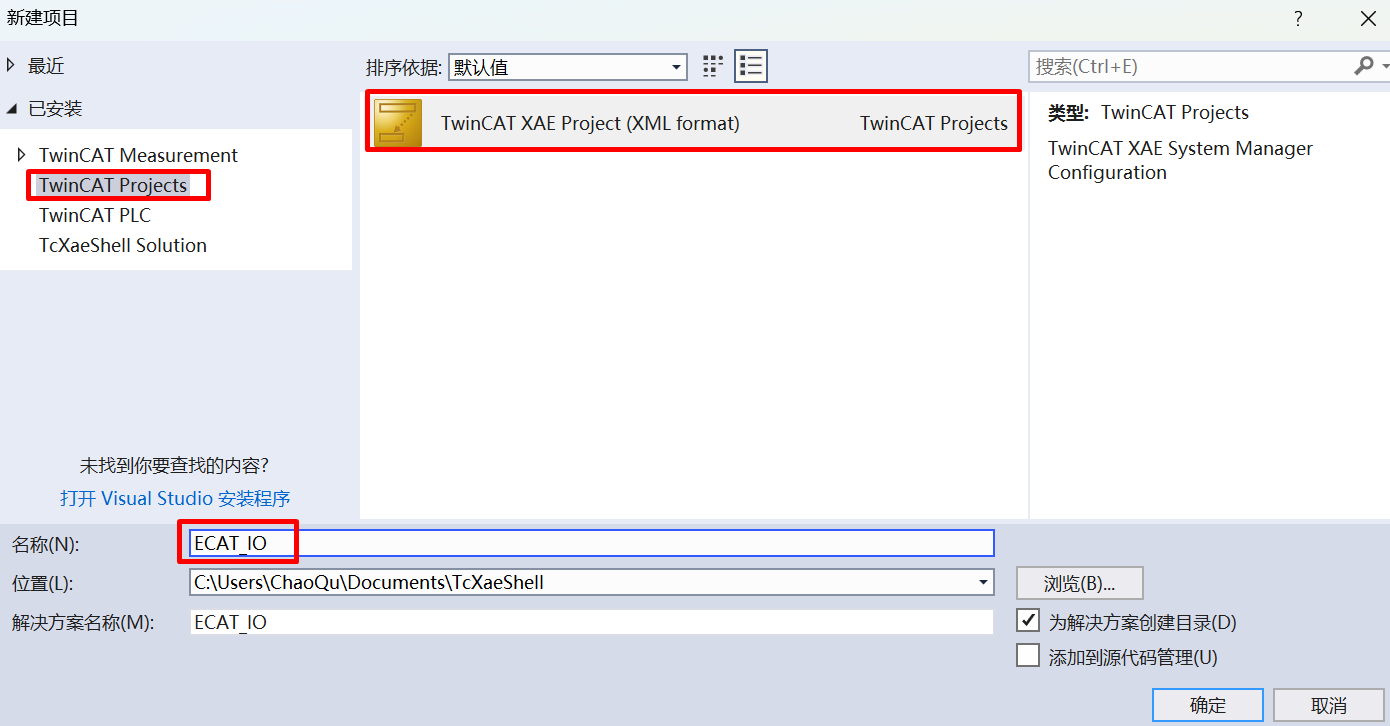

  1. Click TwinCAT Project , after naming, click OK

12.9.5.3. 5.3 Software Configuration

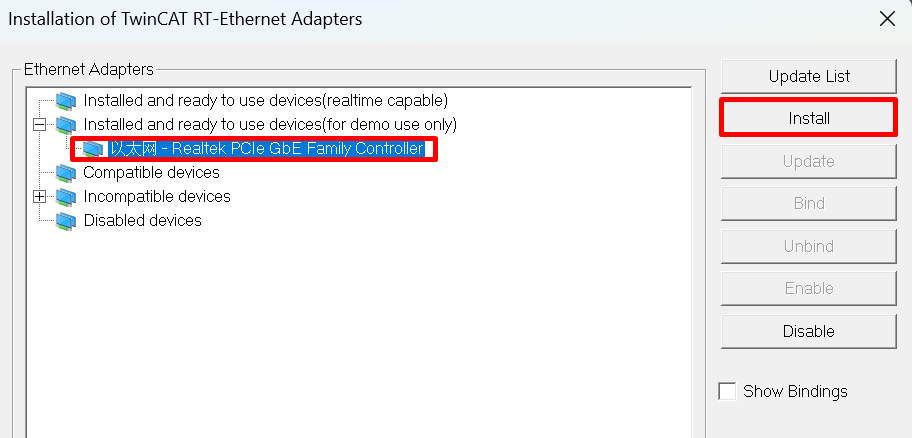

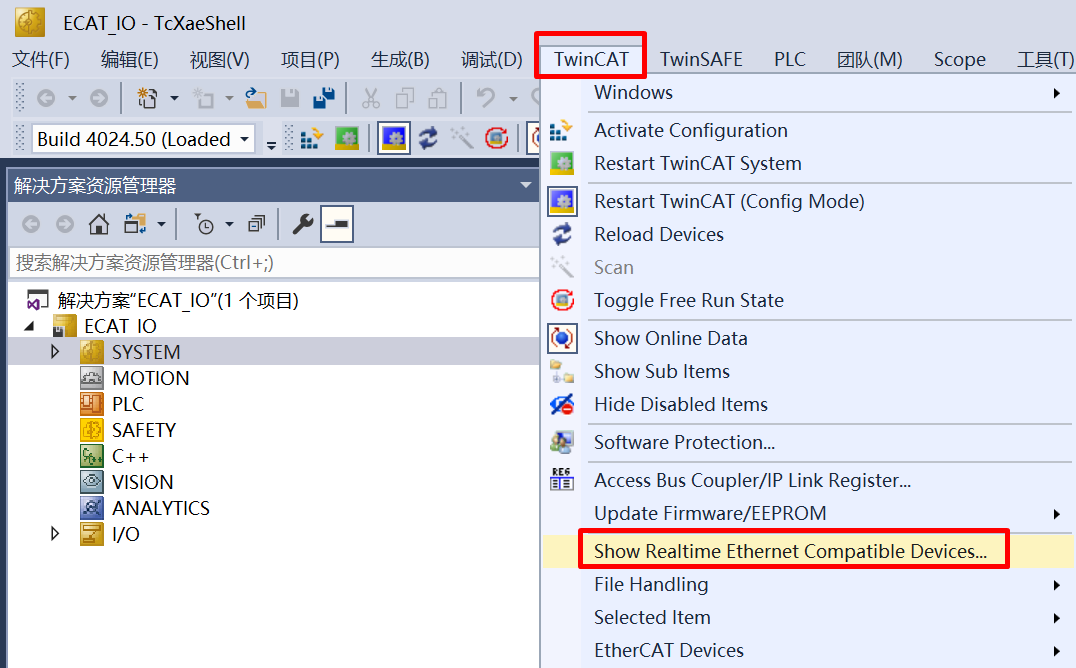

  1. Update network card driver (required for first use)

  1. clock setting

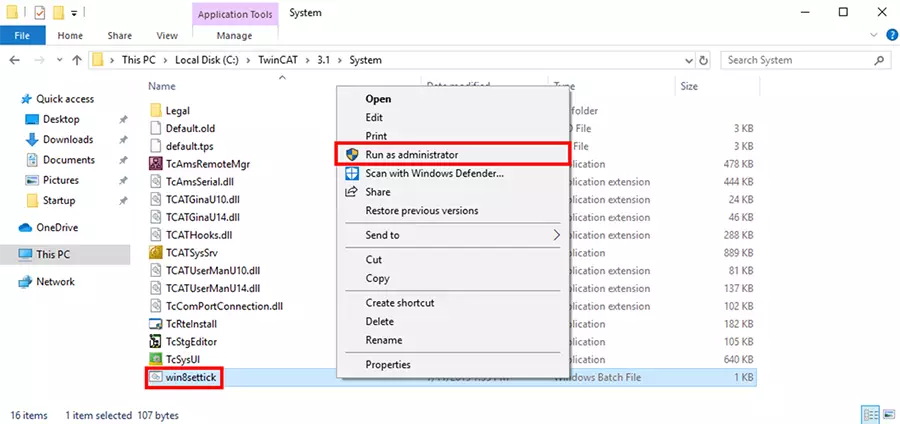

The TwinCAT may report the error during runtime: Init4RTime：Start Interrupt：Ticker started >> AdsWarning4115 （0x1013,RTIME：system clock setup failed）, win8settick.bat needs to run with administrator privileges(C：TwinCAT3.1Systemwin8settick.bat)

12.9.5.4. 5.4 Scan device

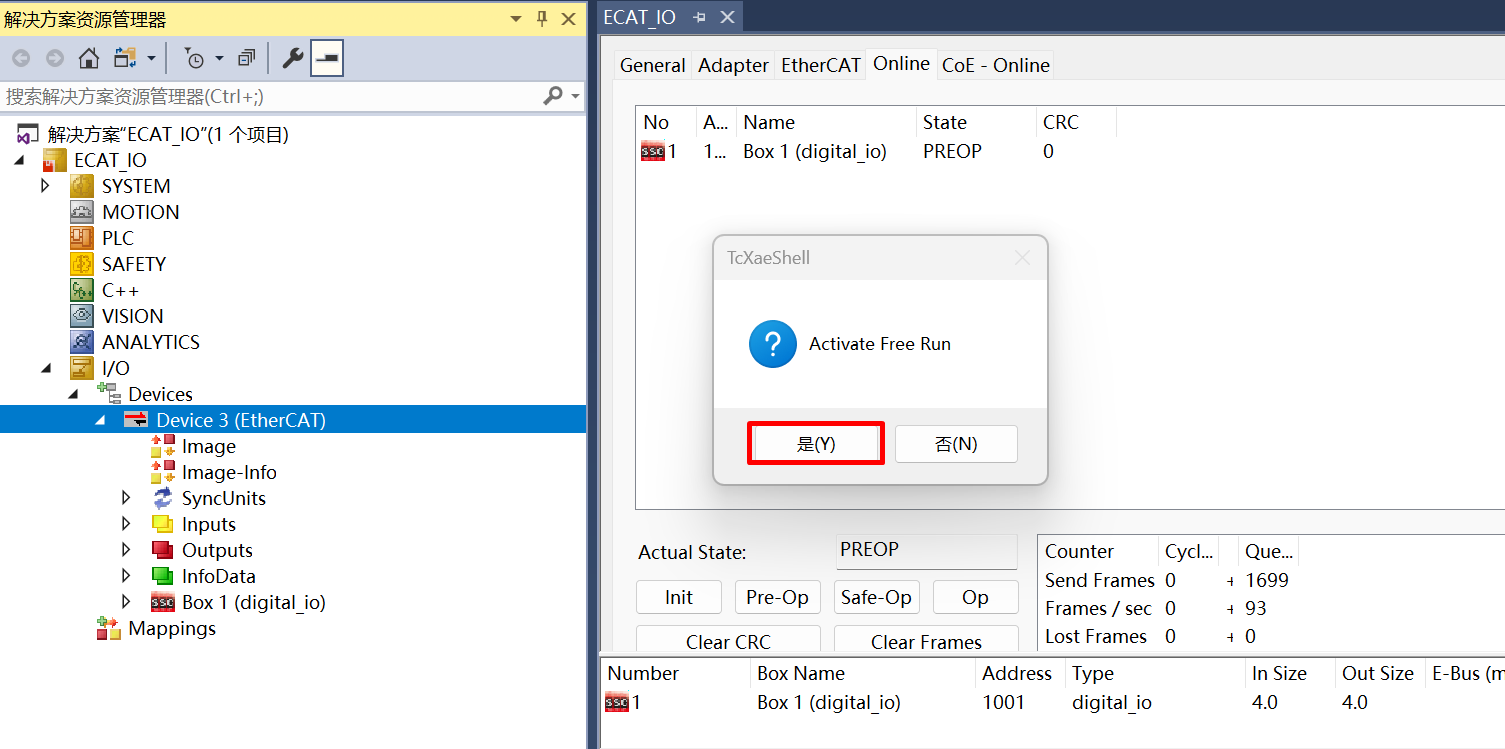

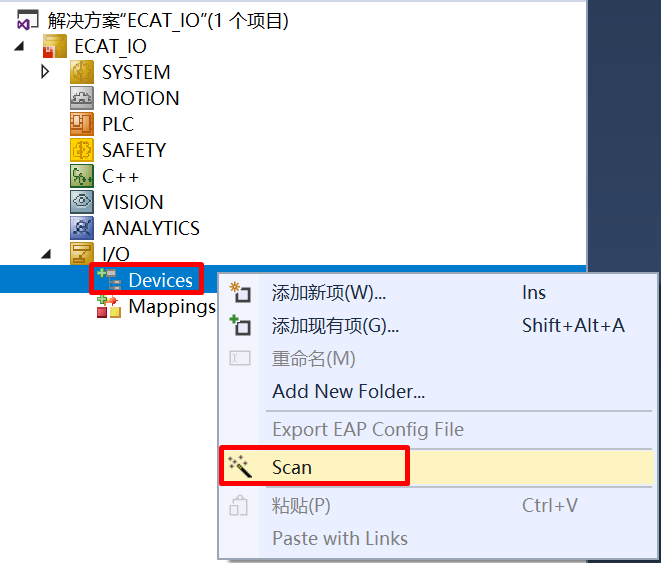

  1. Right click Device, then click Scan

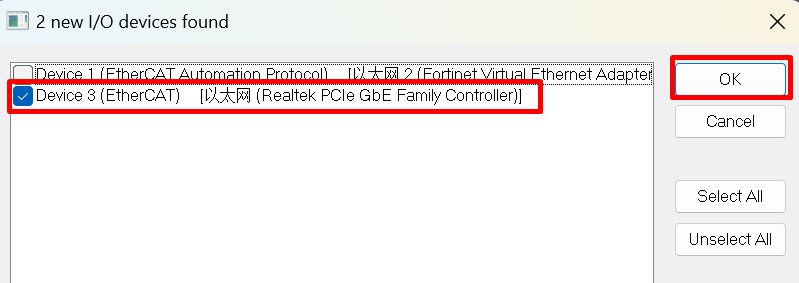

  1. Choose correct network

12.9.5.5. 5.5 Update EEPROM context

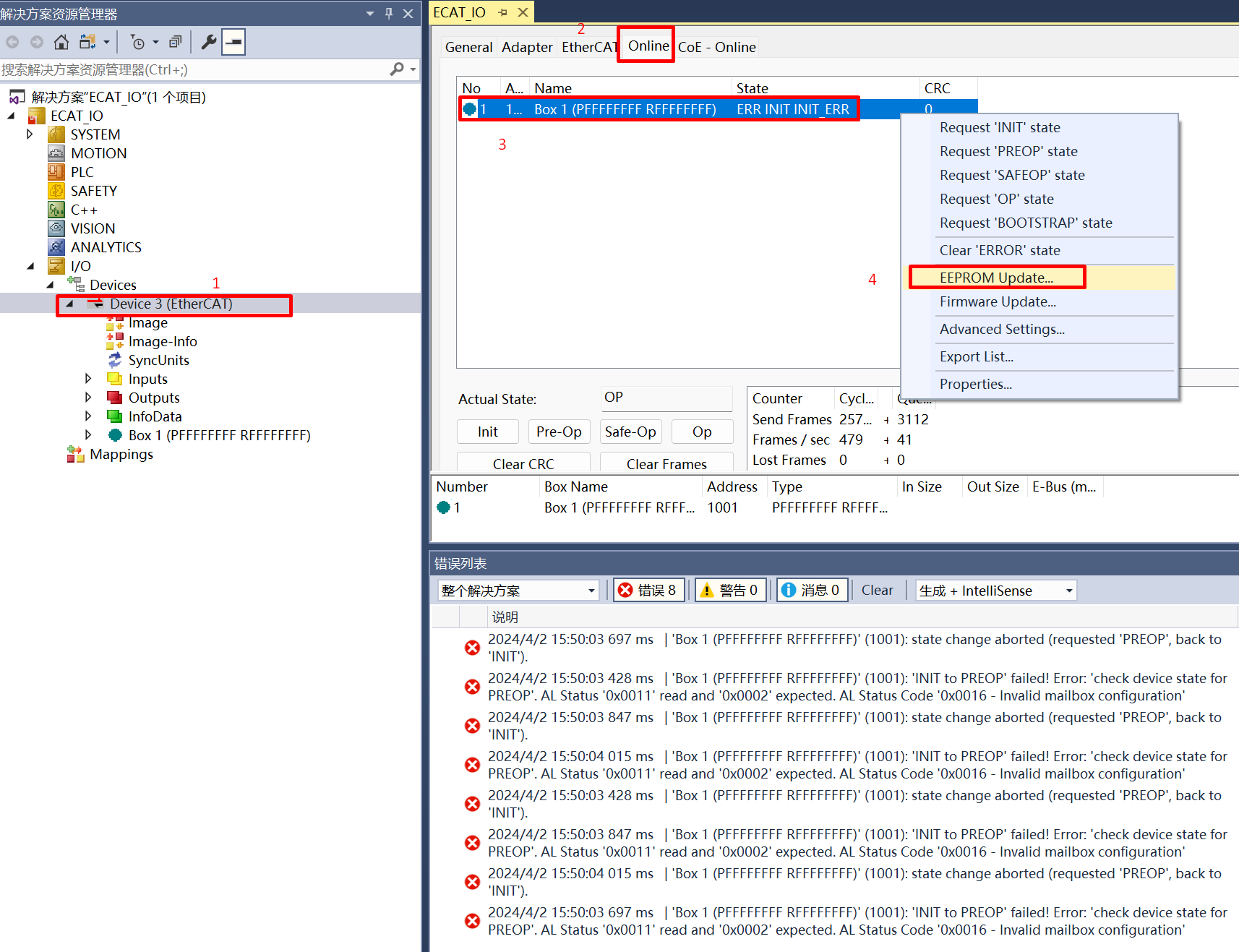

  1. Double click on the scanned device, click Online , right click Box , then click EEPROM Update 。

    • For cases where the EEPROM content is empty, it is not possible to find a matching Box when scanning the device. In this case, it is necessary to update the EEPROM content。 *

    • In the case where EEPROM content is empty, When ESC is powered on to load EEPROM data, a checksum error will occur, which will cause PDI to not work. At this time, EtherCAT communication is possible and EEPROM content can be updated through the main station. *

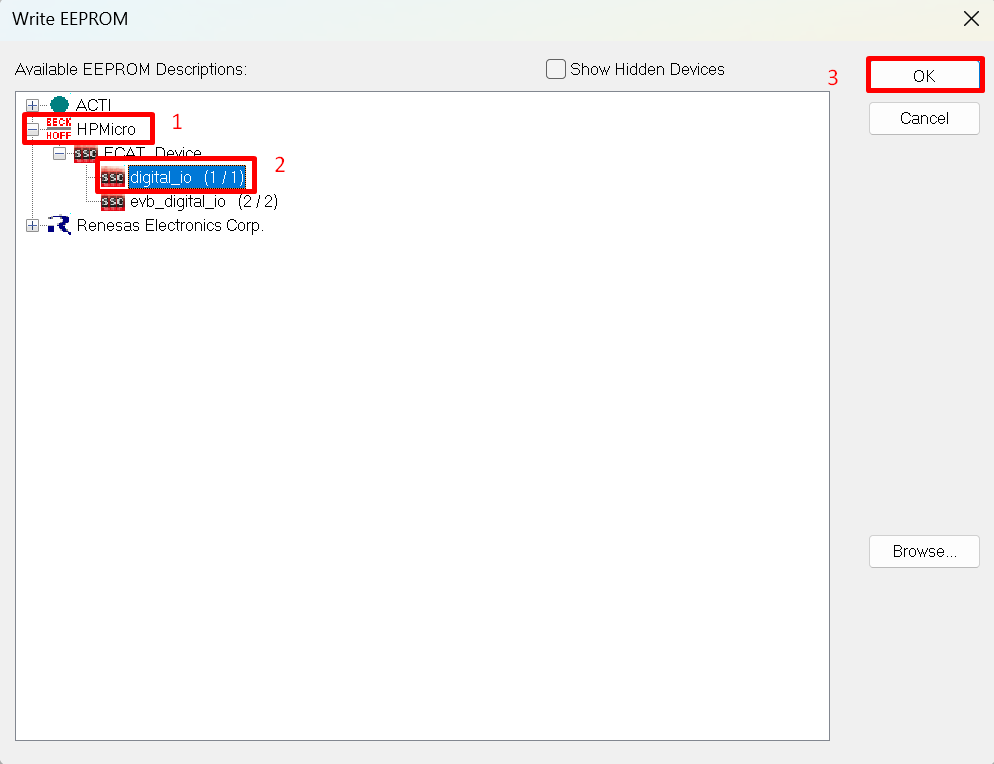

  2. chosse correct files, click OK , wait for completion

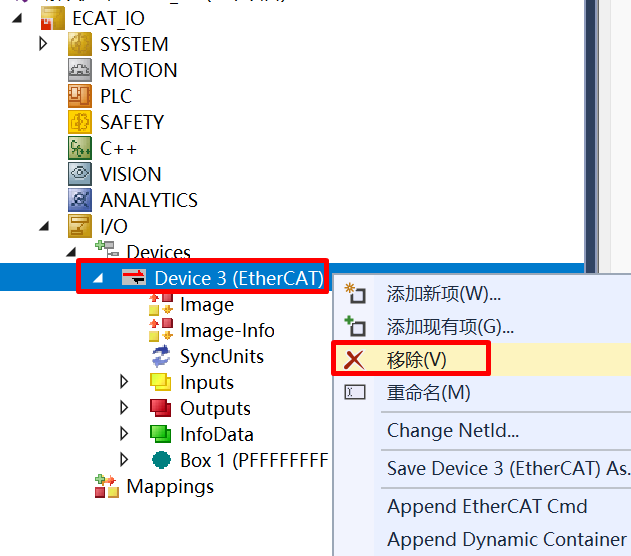

  3. Reset the board, delete the scanned devices and rescanning

12.9.5.6. 5.6 IO Control

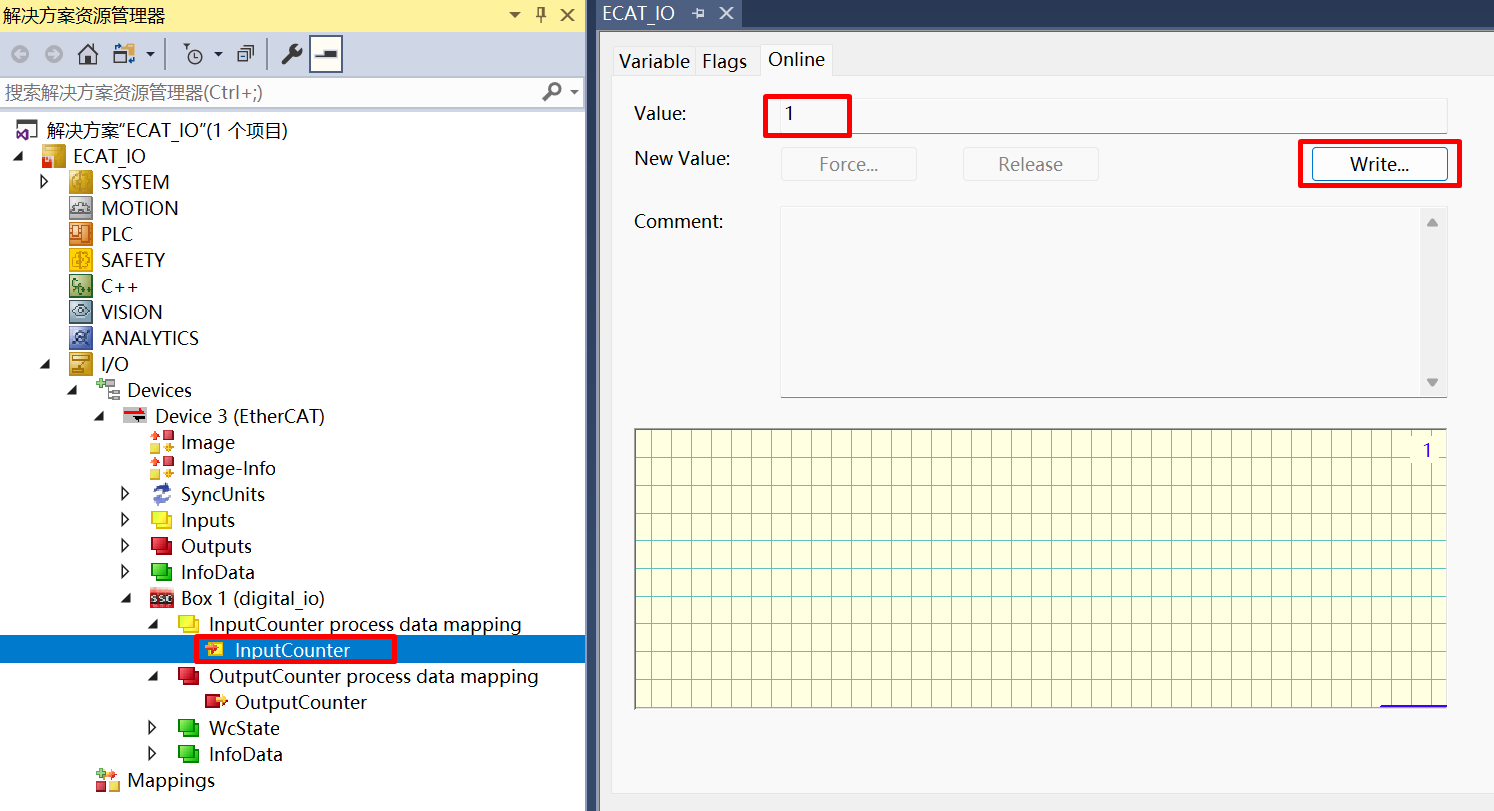

  1. Input IO, change DIP switch, “InputCounter” value change in TwinCAT

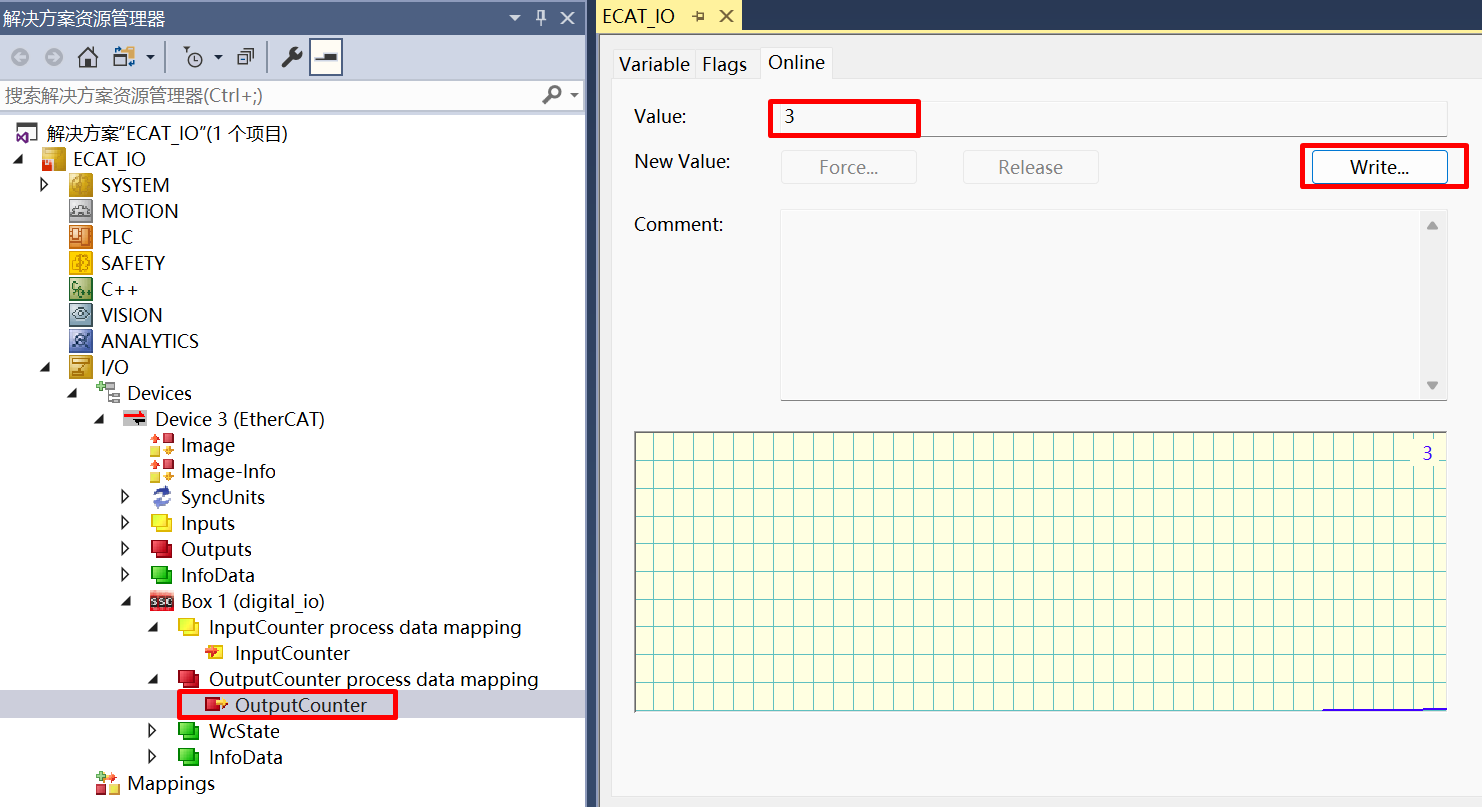

  1. Output IO, write “OutputCounter” value in Twincat, Output LED change

  1. Check RUN LED and ERR_LED status

12.9.5.7. 5.7 DC setting

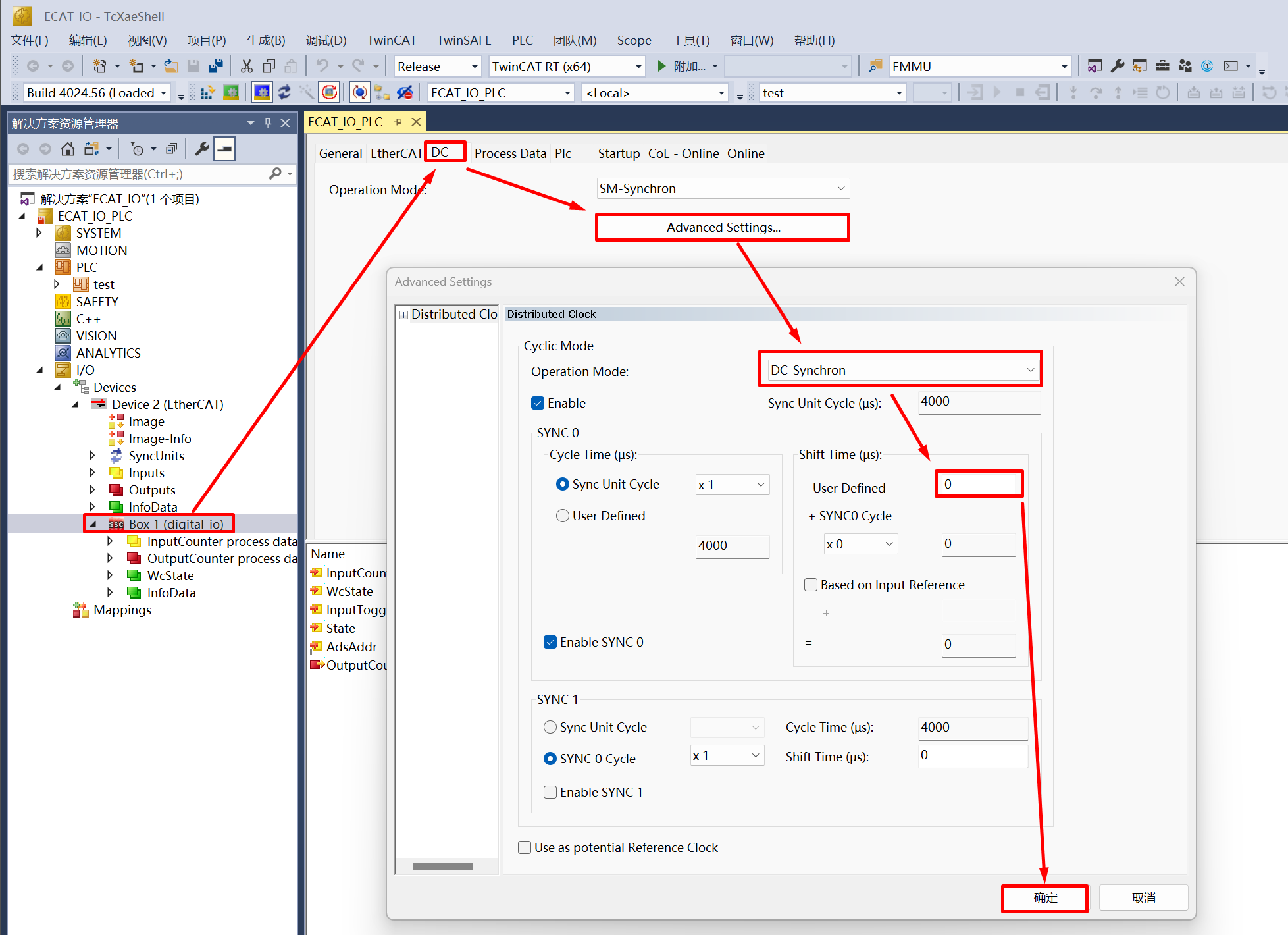

  1. Set the synchronization mode of the slave station, where you can set an individual Shift Time for the slave station (Shift Time is used to ensure that all slave stations receive data from the master station before the DC sync event)

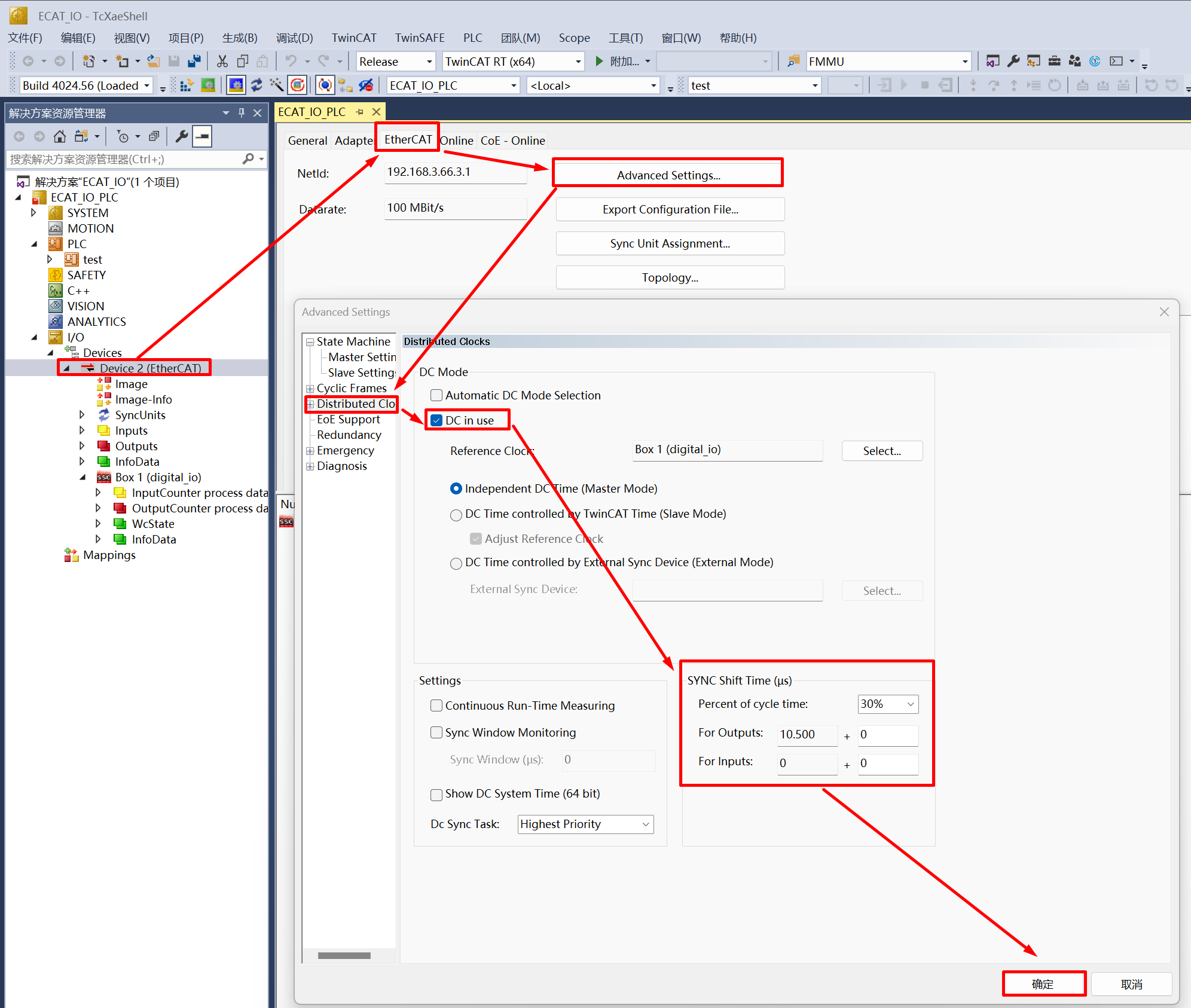

  2. Set the synchronization mode of the master station, through the Sync Shift Time of the master station, you can set the shift time for all DC sync mode slave stations (usually 20%~30% of the Sync Unit Cycle time), Actual Shift Time of a single slave station = Shift Time set by the master station + Shift Time set by the slave station

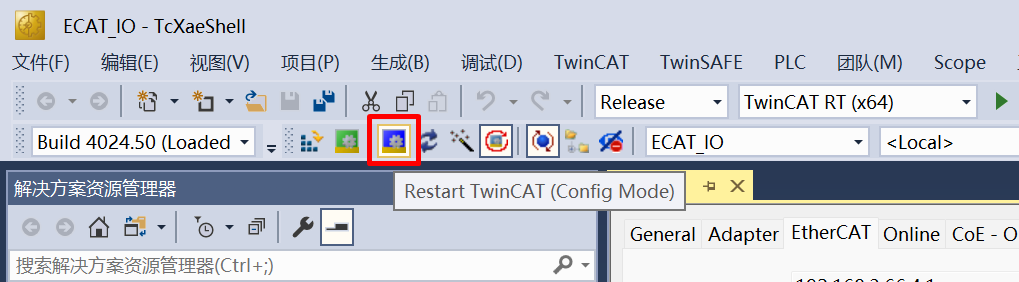

  3. Click Restart TwinCAT (Config Mode), slave stations can enter OP state under DC sync mode. In actual use, tasks should be created in TwinCAT (such as PLC task or NC Task), set the synchronization between slave and master station tasks, activate the configuration, and enter Run Mode to ensure synchronization performance, working under DC sync mode

12.9.6. 6. Running the example

After the project is running correctly, the serial terminal will output the following information, and the input-output IO status corresponds to the TwinCAT project configuration:

When EEPROM data needs to be initialized, the log is as follows:

EtherCAT IO sample
Init EEPROM content.
Init EEPROM content successful.
EEPROM loading successful, no checksum error.

When EEPROM data does not need to be initialized, the log is as follows:

EtherCAT IO sample
No need to init EEPROM content.
EEPROM loading successful, no checksum error.
