10. HPM6P00EVK
10.1. Overview
The HPM6P00 is a dual-core MCU running 600MHz with high computing power and abundant peripheral resources.

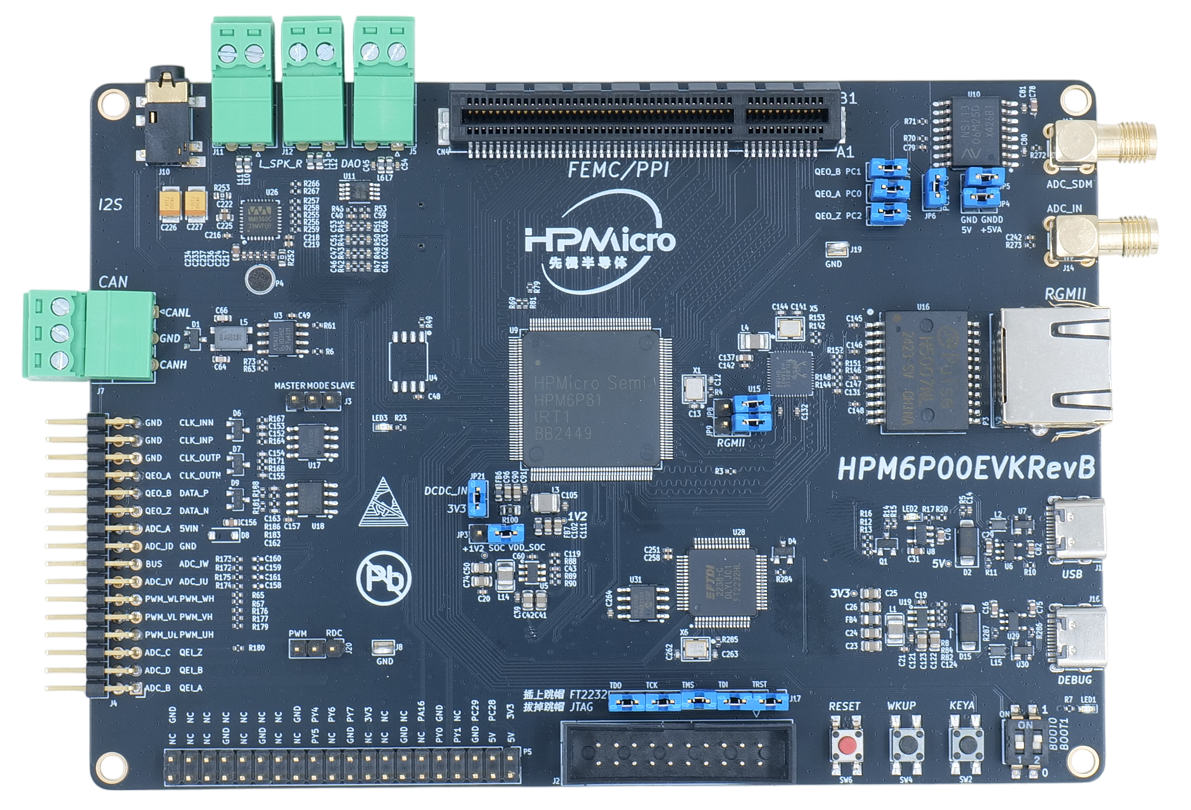

The HPM6P00EVK is an evaluation board for the HPM6P00 series MCU, providing a range of interfaces including ADC input with SMA interface, SDM input with SMA interface, motor control interface (QEO/QEI/SEI/PWM/ADC), CAN interface, Ethernet interface, USB interface, audio interface, PPI/FEMC interface, and Raspberry Pi interface. It also integrates an onboard debugger FT2232 for easy debugging by users.
10.2. Hardware
HPM6P00 MCU (600MHz dual-core, 1MB Flash and 800KB SRAM on chip)
Ethernet
1000 Mbits PHY
USB
USB type C (USB 2.0 OTG) connector x1
Audio
Line in
Mic
Speaker
DAO
Motor
RS422
RS485
AD sensor
NSI1306W25
Others
LED
CAN
Note
When using FEMC(SDRAM) or PPI peripherals, please insert the corresponding expansion board into the PPI/FEMC interface

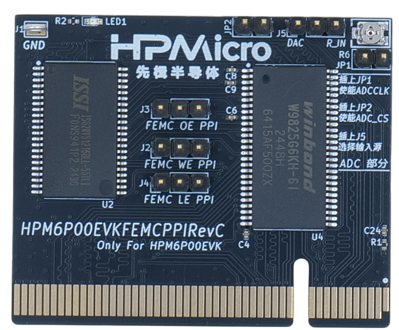

The standard expansion board for HPM6P00EVK evaluation purposes is as follows, with a 16 bits SDRAM (FEMC access), a 16 bits SRAM (FEMC or PPI access) and a parallel ADC (PPI access).
The FEMC/PPI interface has high flexibility. If you need to evaluate other parallel port devices, such as FPGA, ASYNC SRAM, etc., you can design your own expansion board or contact us.
10.3. DIP Switch
Bit 1 and 2 control the boot mode
bit[2:1] |
Description |
|---|---|
OFF, OFF |
Boot from Quad SPI NOR flash |
OFF, ON |
Boot from eMMC |
ON, OFF |
ISP |
Note
On HPM6P00EVKRevB, when the ISP mode is selected and Segger or Ozone is used for online debugging, network initialization will fail due to the multiplexing of USB0_P and ENet RXCK signals and the differential output from the USB controller.
10.5. Plug-in
SEI CLK Section:
Function
Position
Note
SEI.CLK Section
J3
Master side, CLKO active. Slave side, CLKI active
PWM/RDC interface section
Function
Position
Note
PWM/RDC interface
J20
PWM side, the J4.PWM_UH pin is the PWM_UH function.
RDC side, the J4.PWM_UH pin is the RDC0 function
USB/RGMII interface section
Function
Position
Note
USB/RGMII interface
JP8/JP9
All disconnected: can use USB interface.
All connected: can use RGMII interface
SDM/QEO interface section
Function
Position
Note
SDM interface
JP1/JP2/JP7/JP4/JP5/JP6
Disconnect JP1/JP2/JP7
Connect JP4/JP5/JP6, R71(0Ω) needs to be connected on HPM6P00EVKRevB.
QEO interface
JP1/JP2/JP7/JP6
Connect JP1/JP2/JP7
Disconnect JP6, R71(0Ω) needs to be removed on HPM6P00EVKRevB.
Debug interface select
Function
Position
Note
Debug interface select
J17
All connected: use the on-board ft2232,
All disconnected: use JTAG interface
PPI/FEMC interface
Function
Position
Note
PPI/FEMC interface
CN4
Connecting to PPI or FEMC expansion board
PPI/FEMC expansion board interface select
Function
Position
Note
FEMC: SDRAM and SRAM can work simultaneously
J2、J3、J4、JP1、JP2
connect J2/J3/J4 to FEMC side, disconnect JP1/JP2
PPI: ADC and SRAM can work simultaneously
J2、J3、J4、JP1、JP2
connect J2/J3/J4 to PPI side, connect JP1/JP2
Other: ADC input select
J5
The ADC voltage can come from DAC or on-board adjustable resistor voltage division, selected by J5
10.6. Pin Description
PUART Pin: The PUART is used for low power mode testing, such as wakeup, etc.
Function
Pin
Position
PUART.TX
PY00
P5[8]
PUART.RX
PY01
P5[10]
UART0 Pin:
The UART0 use for core0 debugger console:
Function
Pin
Position
UART0.TX
PA00
DEBUGUART0
UART0.RX
PA01
DEBUGUART0
UART4 Pin:
The UART4 is used for core1 debugger console or some functional testing using UART, such as MICROROS_UART, USB_CDC_ACM_UART, MODBUS_RTU, lin etc.
Function
Pin
Position
Remark
UART4.TX
PY00
P5[10]
UART4.RX
PY01
P5[8]
UART4.break
PY05
P5[24]
Generate UART break signal
CAN Pin
Function
Position
CAN_H
J7[0]
CAN_L
J7[2]
Audio Pin
Function
Position
Speaker Left Channel
J11
Speaker Right Channel
J12
3.5mm
J10
DAO Interface
J5
ADC Pin
Function
Position
ADC Input
J4[2]
ADC16 Differential Input
Used by
samples/drivers/adc/adc16_differentialand other differential ADC16 examples.Function
Pin
Position
ADC16 diff master (ADC2)
PD24 (ADC2.IN08)
J4[14] (ADC_IV)
ADC16 diff slave (ADC3)
PD25 (ADC3.IN09)
J4[15] (ADC_IW)
DAC Pin
Function
Position
DAC Output
J5[1]
ACMP pin
Function
Position
CMP4.INN6
J4[2]
Quadrature Encoder Pin
Function
Position
QEI.A / HALL.U
J4[1]
QEI.B / HALL.V
J4[3]
QEI.Z / HALL.W
J4[5]
QEO.A
J4[26]
QEO.B
J4[24]
QEO.Z
J4[22]
HALL Pin
The HALL pin of the hpm6p00evk needs to be wired separately.
Function |
EVK Position |
Motor Position |
|---|---|---|
HALL.U |
J4[1] |
J22[3] |
HALL.V |
J4[3] |
J22[4] |
HALL.W |
J4[5] |
J22[5] |
GND |
J4[32] |
J22[1] |
PWM Output Pin
Function
Position
PWM.WL / PWM1.P5
J4[12]
PWM.WH / PWM1.P4
J4[11]
PWM.VL / PWM1.P3
J4[10]
PWM.VH / PWM1.P2
J4[9]
PWM.UL / PWM1.P1
J4[8]
PWM.UH / PWM1.P0
J4[7]
PWM.FAULT
J4[22]
SEI Pin
Function
Position
Note
SEI.CLK_IN_P
J4[29]
Clock differential output in host mode P
SEI.CLK_IN_N
J4[31]
Clock differential output in host mode N
SEI.CLK_OUT_P
J4[27]
Clock differential input in slave mode P
SEI.CLK_OUT_N
J4[25]
Clock differential input in slave mode N
SEI.DATA_P
J4[23]
Data differential Signal P
SEI.DATA_N
J4[21]
Data differential Signal N
QEIV2 Sin/Cos Pin
Function
Position
Note
ADC2.INA09
J4[15]
ADC_IW (Cos)
ADC0.INA14
J4[13]
ADC_IU (Sin)
RDC pin
Function
EVK board Position
RDC board Position
RDC.PWM
J4[7]
J2[7]
RDC.ADC0
J4[13]
J2[13]
RDC.ADC1
J4[14]
J2[14]
GND
J4[32]
J2[17]
PLB Pulse Output Pin
Function
Position
PLB.PULSE_OUT
J4[9]
PLB LIN Clock Pin
This pin is used for UART LIN Slave baudrate adaptive demo to detect the clock of RX signal
Function
Position
PLB.TRGM_IN
J20[3]
PLB Filter Output Pin
Function
Position
PLB.Filter_IN
J4[9]
PLB.Filter_OUT
J4[11]
LOBS Pin
Function
Pin
Position
Trig Pin0
PC28
P5[3]
Trig Pin1
PC29
P5[5]
GPTMR Pin
Function
Position
Remark
GPTMR3.CAPT_0
P5[8]
SENT decode input pin (idle high and low levels share the same pin)
GPTMR3.COMP_0
P5[10]
BLCK of i2s emulation
GPTMR3.COMP_2
J4[5]
LRCK of i2s emulation
GPTMR0.COMP_2
J4[9]
MCLK of i2s emulation
CS Pin of i2s emulation
Pin
Position
Remark
PA16
P5[11]
The pin that controls the SPI slave CS
SPI Pin
Function
Pin
Position
SPI2.CSN
PY05
P5[24]
SPI2.SCLK
PY04
P5[23]
SPI2.MISO
PY06
P5[21]
SPI2.MOSI
PY07
P5[19]
I2C Pin
Function
Position
I2C1.SCL
P5[5]
I2C1.SDA
P5[3]
Ethernet PPS Pin
Function
Pin
Position
ENET0.EVTO0
PD11
J4[10]
ENET0.EVTI1
PD12
J4[11]
ESP-HOSTED Pin
Function |
Position |
Note |
|---|---|---|
PA16 |
P5[11] |
RESET Pin |
PC29 |
P5[5] |
HANDSHAKE Pin |
PC28 |
P5[3] |
DATA_READY Pin |
BROWNOUT Interrupt Indicator Pin
Function |
Position |
|---|---|
PY07 |
P5[19] |
