36.3. ECAT_IO

36.3.1. 1. Overview

The ECAT_IO example demonstrates the steps to implement an ECAT digital IO slave station with the slave stack code (SSC).

36.3.2. 2. Prepare

36.3.2.1. 2.1 Hardware

  • Development board with ECAT, please refer to Pin Description of the development board. Check the ECAT network port/RUN LED/ERR LED and other hardware

  • PC with Ethernet port

36.3.2.2. 2.2 Software

  • TwinCAT3.1(Build 4024.56)

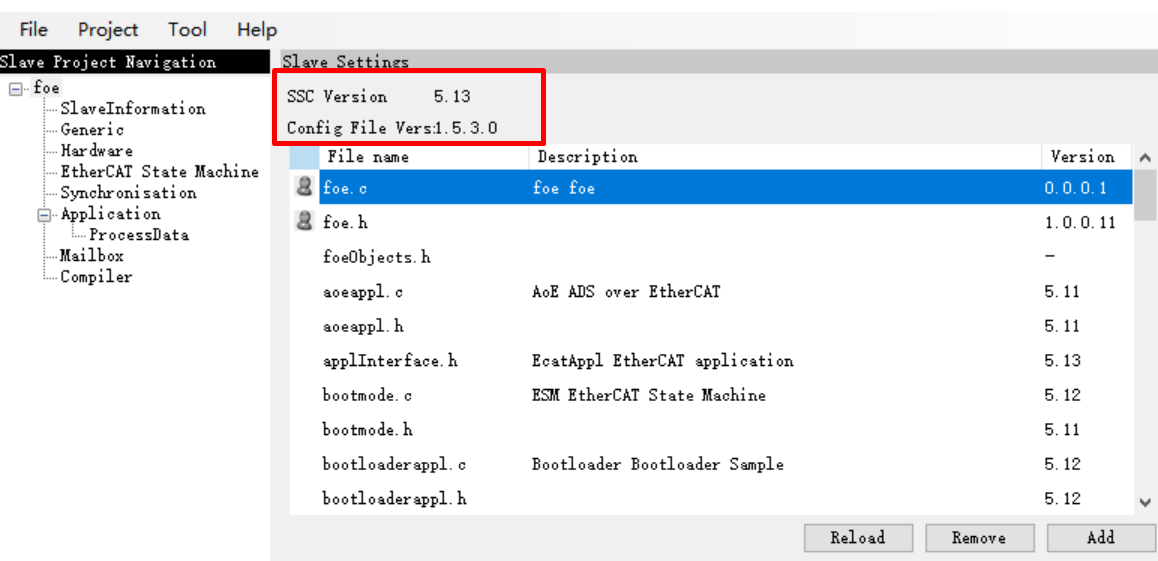

  • SSC Tool(SSC Version: 5.13; Config File Vers: 1.5.3.0)

36.3.3. 3. Project Setting

36.3.3.1. 3.1 EEPROM Emulation Setting

  • The default setting is to use Flash to simulate EEPROM

  • Note: Please allocate appropriate flash space for FLASH-EEPROM content to avoid conflicts with other flash contents

36.3.3.2. 3.2 Using actual EEPROM

  • set the “ESC_EEPROM_EMULATION” and “CREATE_EEPROM_CONTENT” under the “Hardware” attribute to 0 in SSC Tool, then generate the slave protocol stack code.

  • Modify CMakeLists.txt context to “set(CONFIG_EEPROM_EMULATION 0)”.

36.3.4. 4. Generate EtherCAT slave stack code

Due to licensing issues, HPMSDK does not provide EtherCAT slave protocol stack code (SSC). Users have download the SSC Tool from Beckoff’s official website and generate the slave stack code according to the steps.

36.3.4.1. 4.1. Download SSC Tool

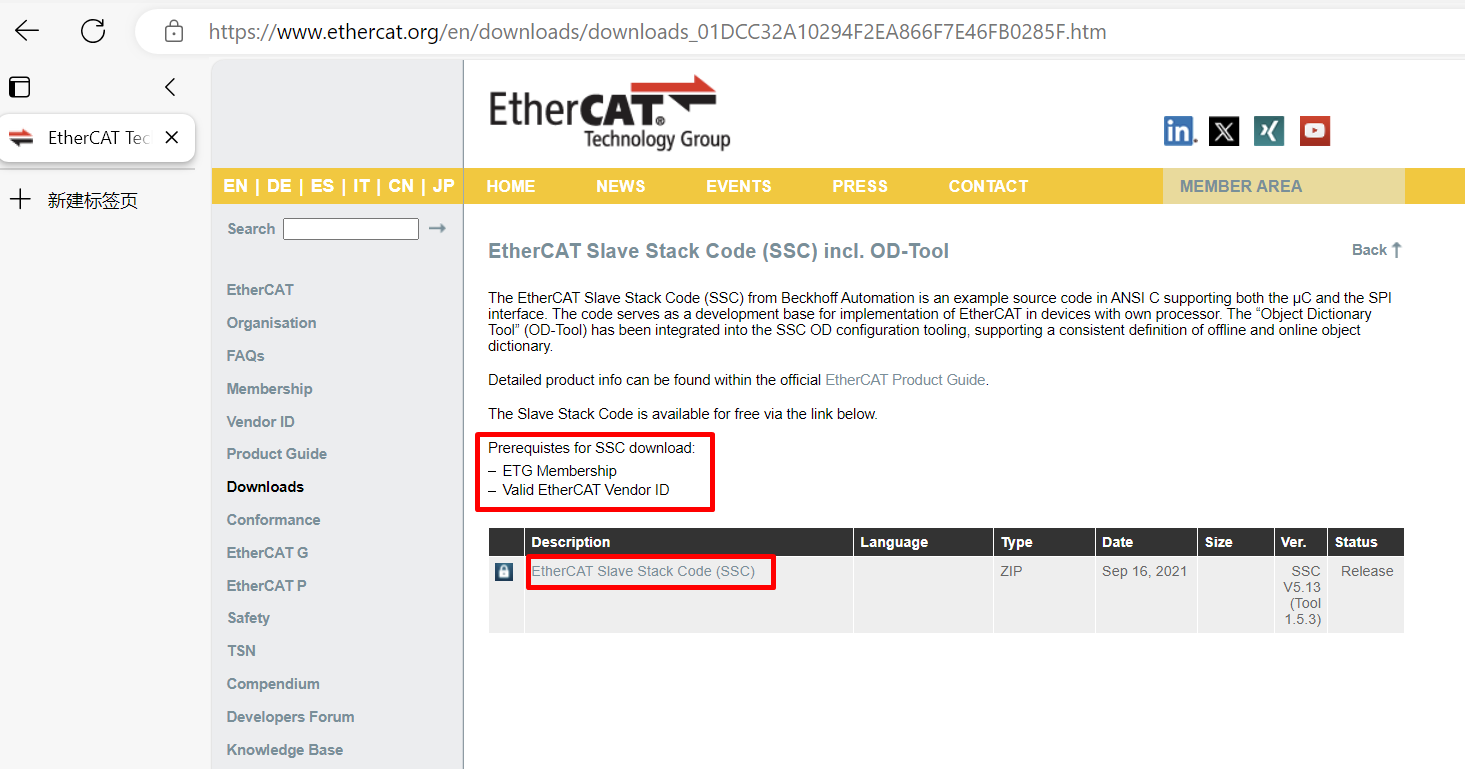

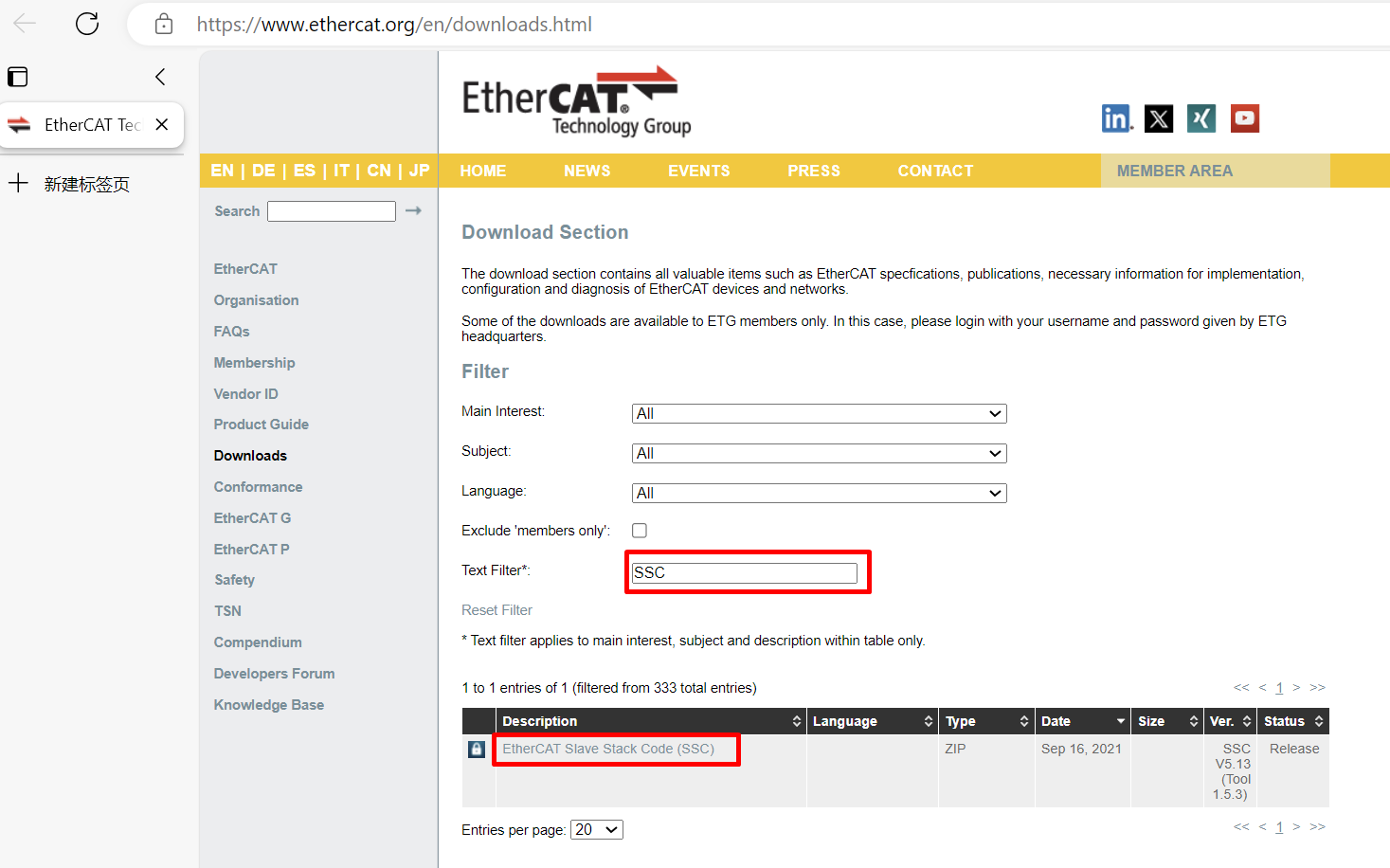

  1. EnterETG Download website, input “SSC” to fliter resource.

    To download, you need to provide an ETG member account and a valid vendor ID

  2. Download and install SSC Tool

36.3.4.2. 4.2 SSC Tool import configuration files

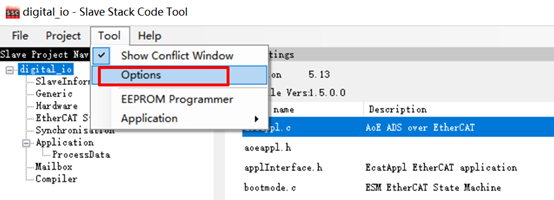

  1. Open SSC Tool, click Tool->Options

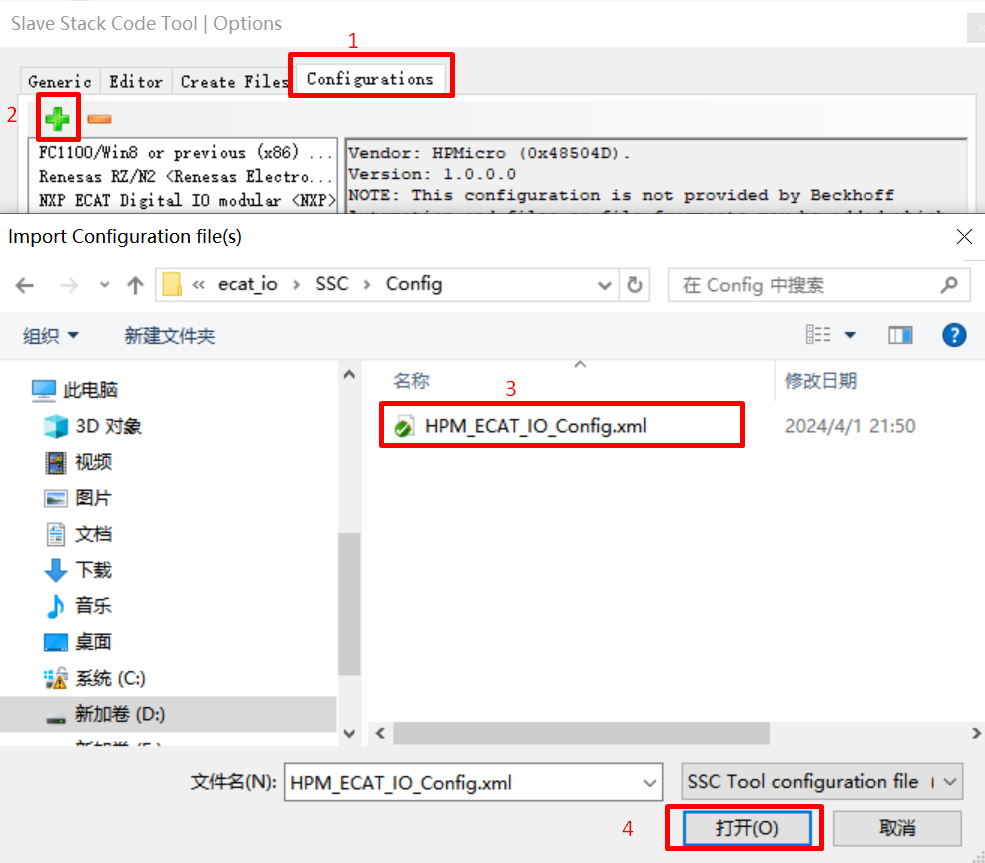

  2. click Configurations, import configuration file(<hpm_sdk>/samples/ethercat/ecat_io/SSC/Config/HPM_ECAT_IO_Config.xml)

36.3.4.3. 4.3 SSC Tool create new project

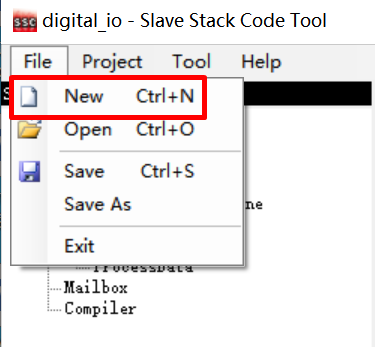

  1. click File->New

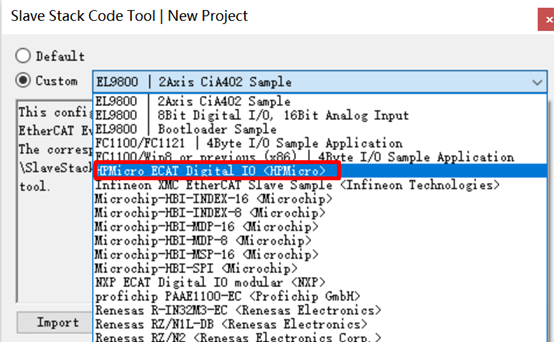

  2. Click Custom option, and select HPMicro ECAT Digital IO from the drop-down list

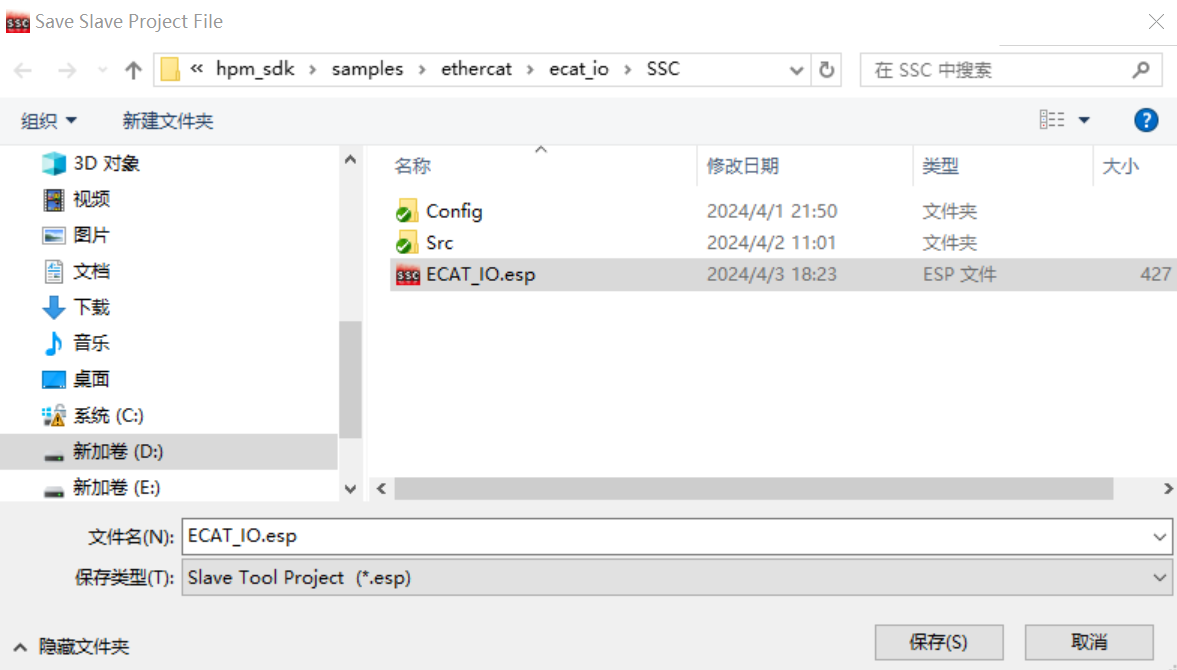

  3. Save project, specify the file path

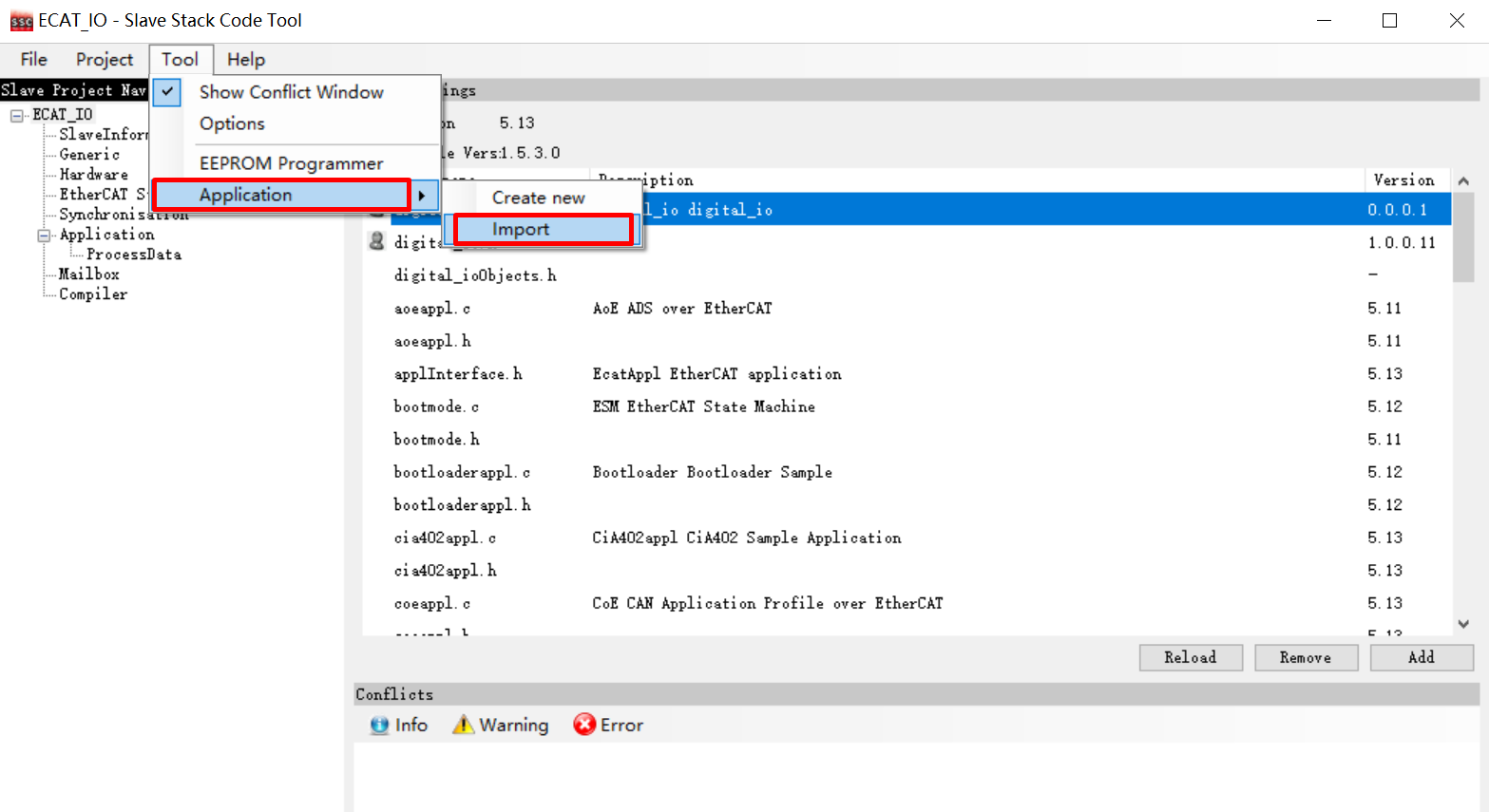

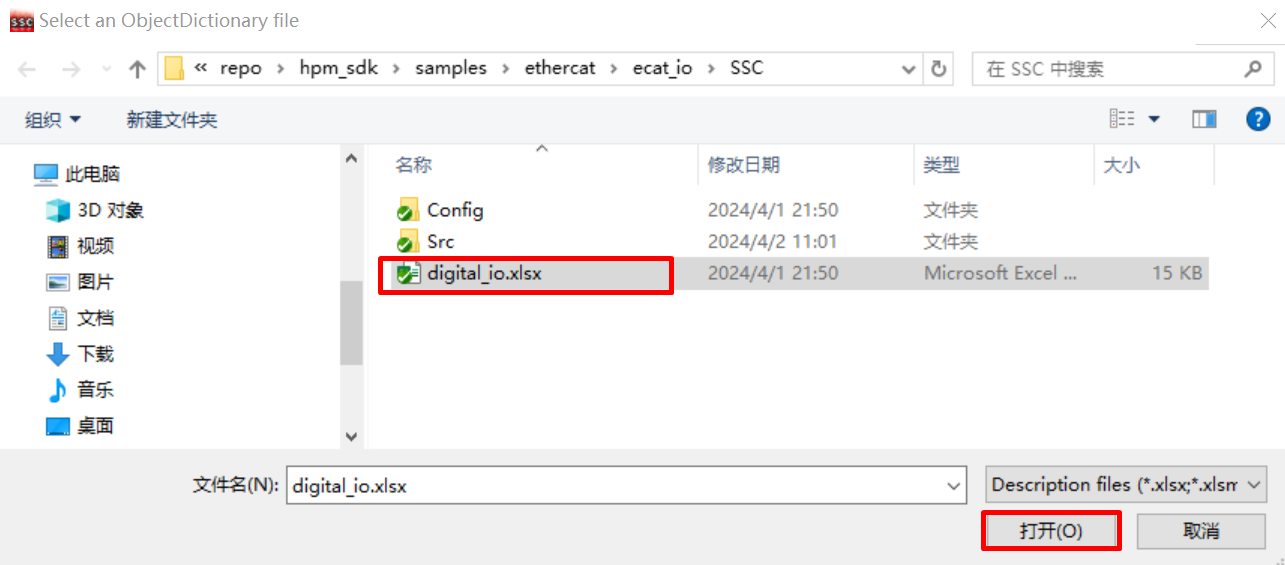

  4. import application - Click Tool->Application->Import, Import <hpm_sdk>/samples/ethercat/ecat_io/SSC/digital_io.xlsx - Click OK

36.3.4.4. 4.4 Create slave stack files

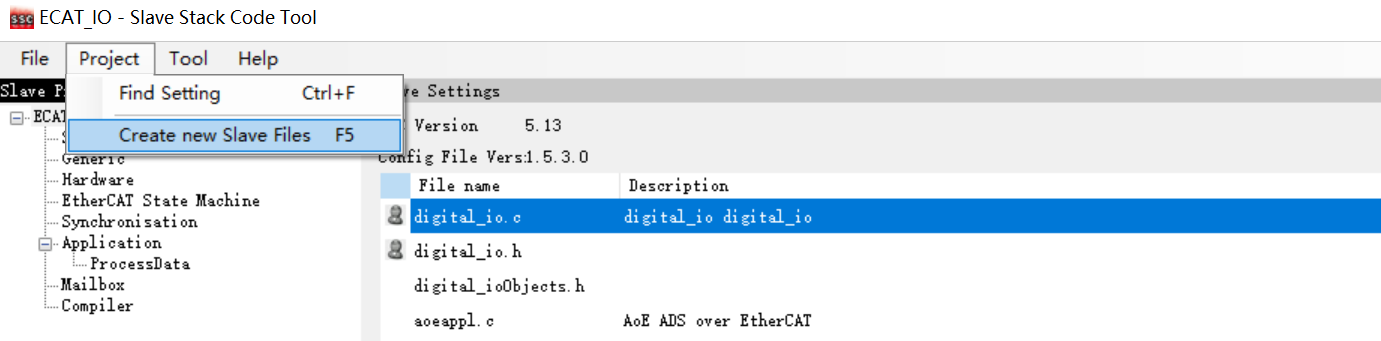

  1. Click Project->Create new Slave Files

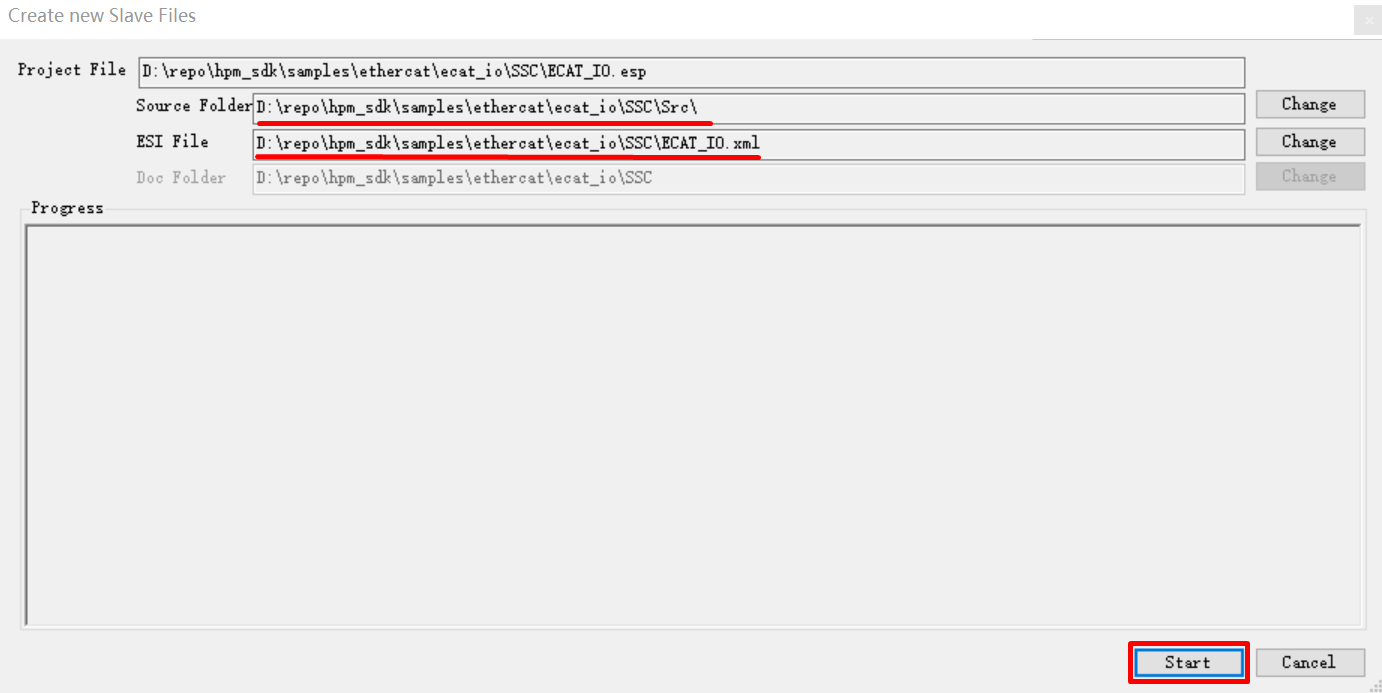

  2. Specify the output path, the output source folder have to set to <ecat_io sample path>/SSC/Src, if other path, have to copy generated SRC folder to <ecat_io sample path>/SSC/Src

36.3.4.5. 4.5 SSC code change

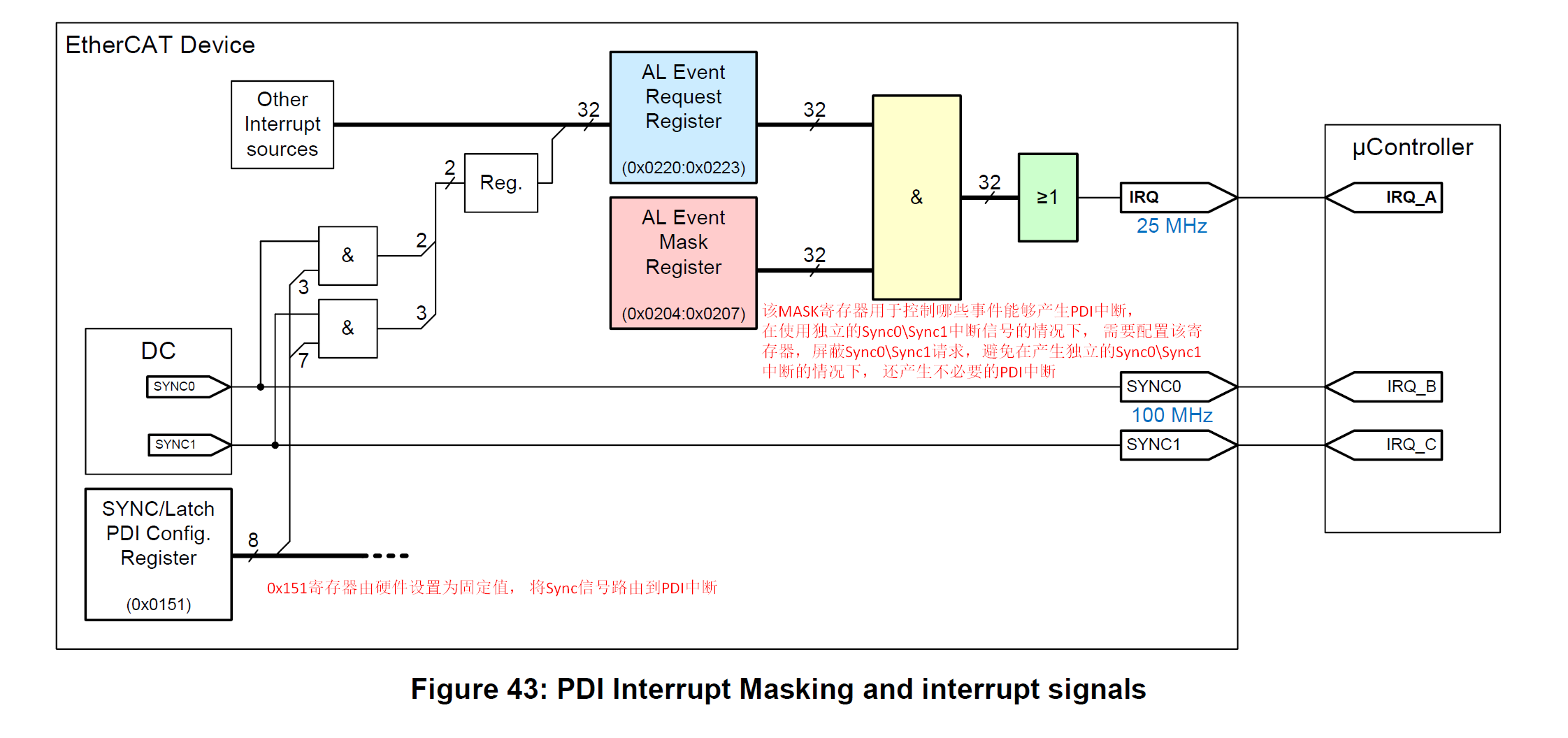

ESC IP supports generating independent Sync0 \ Sync1 interrupts, and Sync0 \ Sync1 requests can also trigger PDI interrupts. To avoid unnecessary PDI interrupts triggered by Sync0 \ Sync1 requests when using independent Sync0 \ Sync1 interrupts, AL Event Mask Register (0x204) needs to be set for masking

Execute in the command line window under the SSC directory：patch -d Src < ssc_pdi_mask.patch

Note：If the patch command is not installed on your PC, you will need to install ver. 2.5.9 or a laterversion of GNU patch. If it is already installed, skip this step. Download the patch command (currently ver. 2.5.9) from the following Web page and store “patch.exe” in a folder on a path that makes the file executable from the command prompt. http://gnuwin32.sourceforge.net/packages/patch.htm

36.3.5. 5. TwinCAT Project setting

36.3.5.1. 5.1. Add ESI file

Copy the generated (ECAT-IO.xml) by SSC tool in previous steps to TwinCAT(C:\TwinCAT\3.1\Config\Io\EtherCAT).

36.3.5.2. 5.2 Create Project

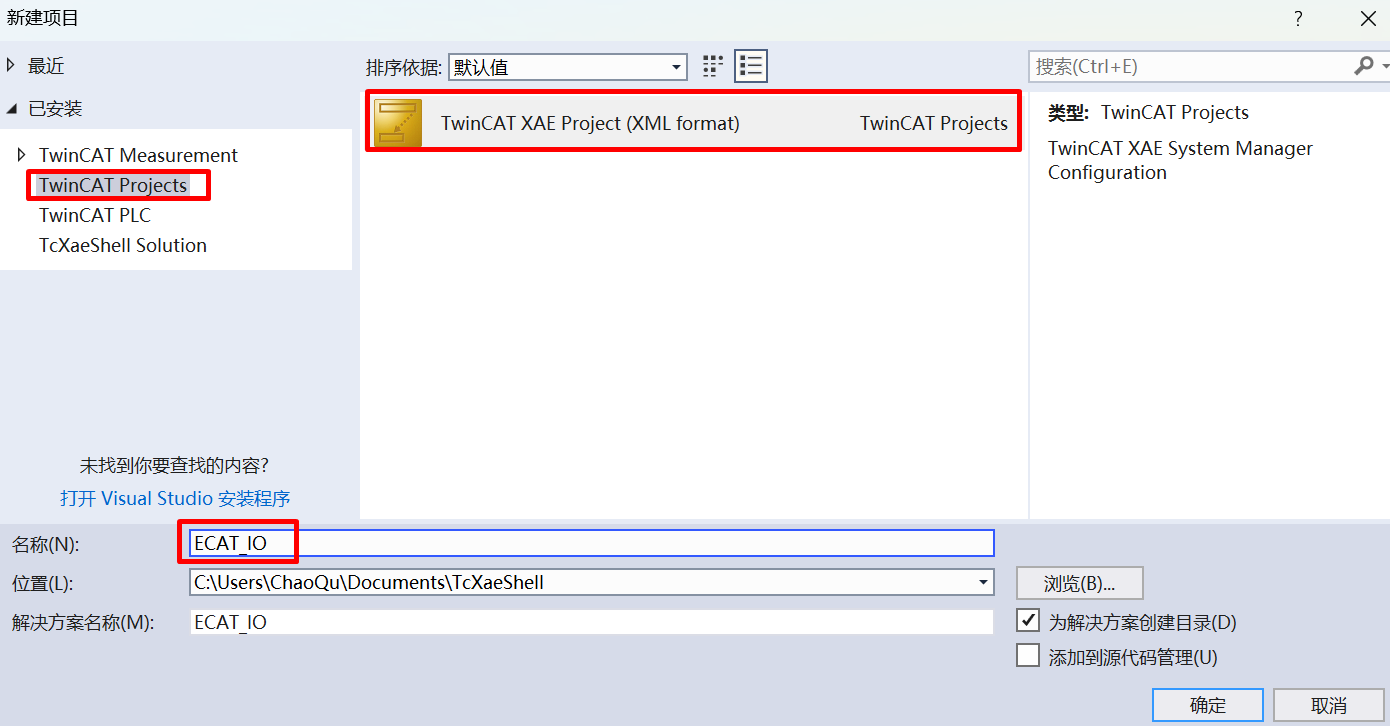

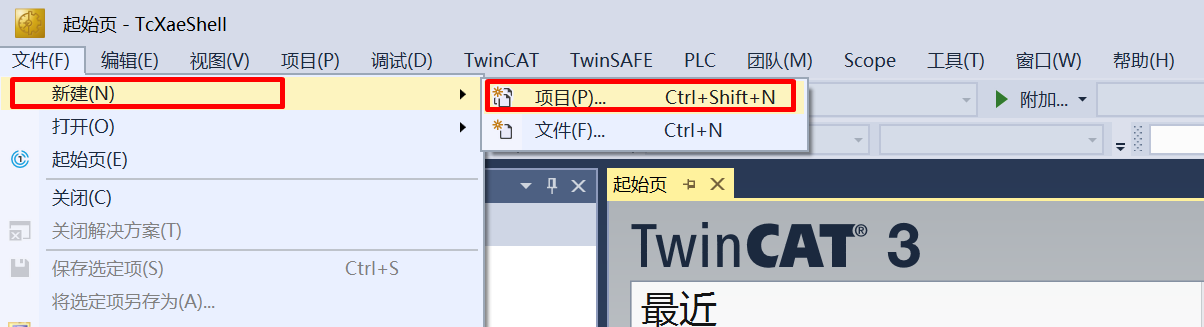

  1. Open TwinCAT，click File->New->Project

  2. Click TwinCAT Project, after naming, click OK

36.3.5.3. 5.3 Software Configuration

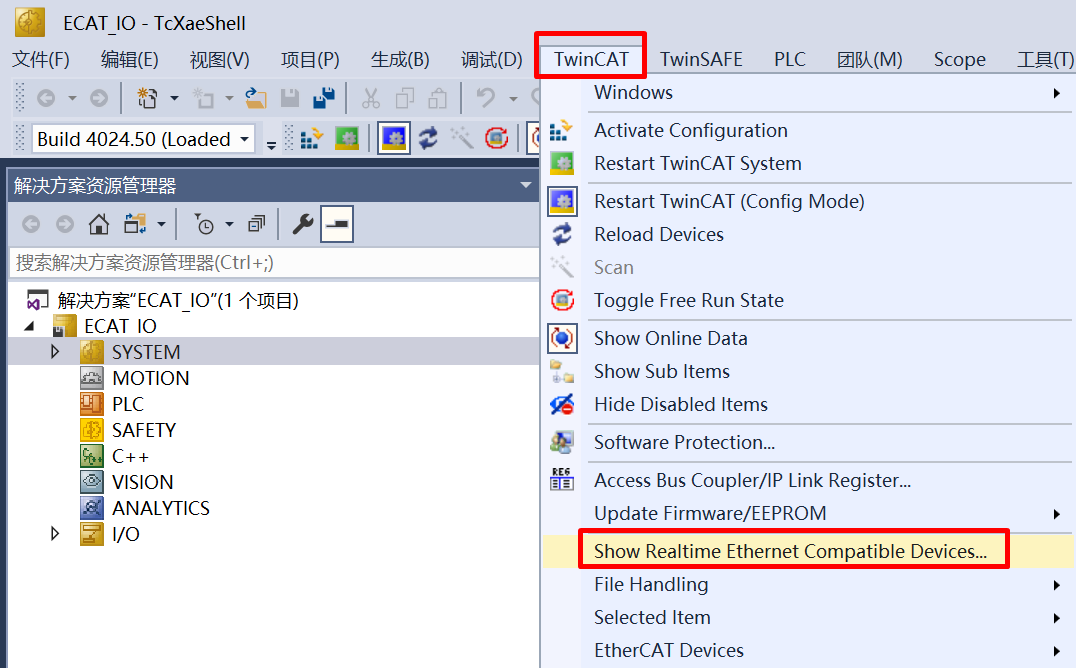

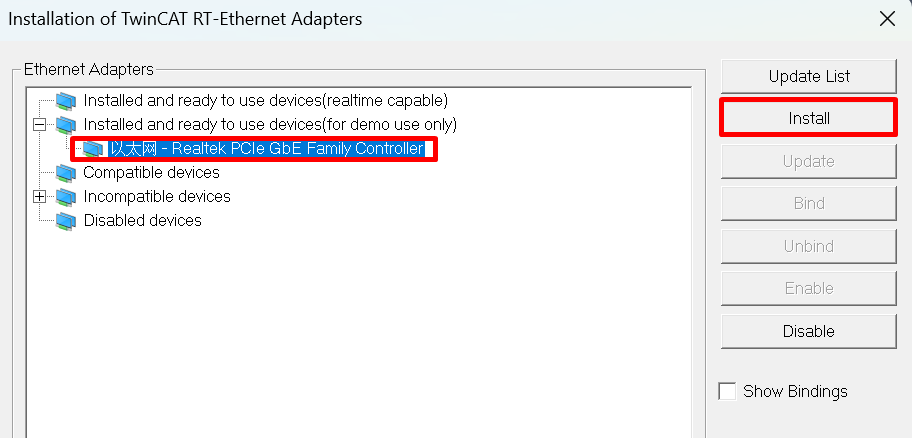

  1. Update network card driver (required for first use)

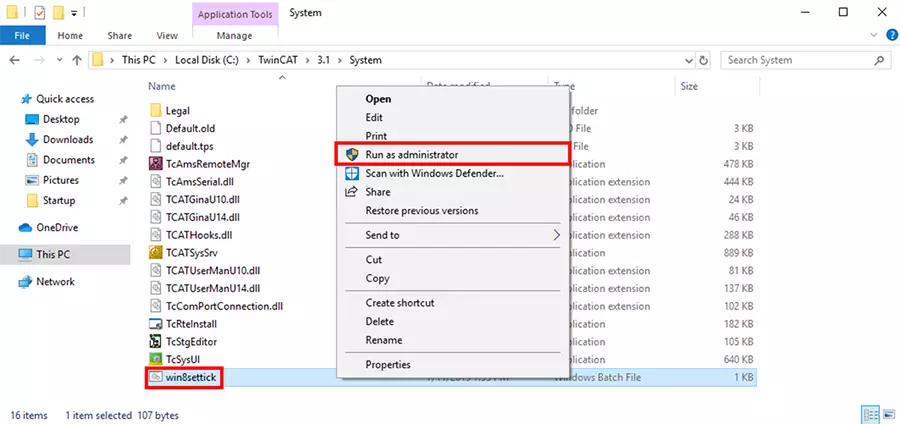

  2. clock setting The TwinCAT may report the following error during runtime, win8settick.bat needs to run with administrator privileges(C：\TwinCAT\3.1\System\win8settick.bat)

    Init4\RTime：Start Interrupt：Ticker started >> AdsWarning4115 （0x1013,RTIME：system clock setup failed）

36.3.5.4. 5.4 Scan device

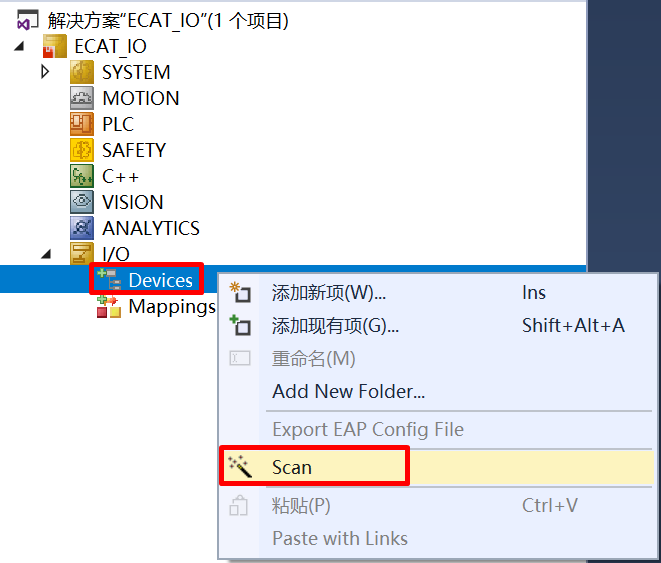

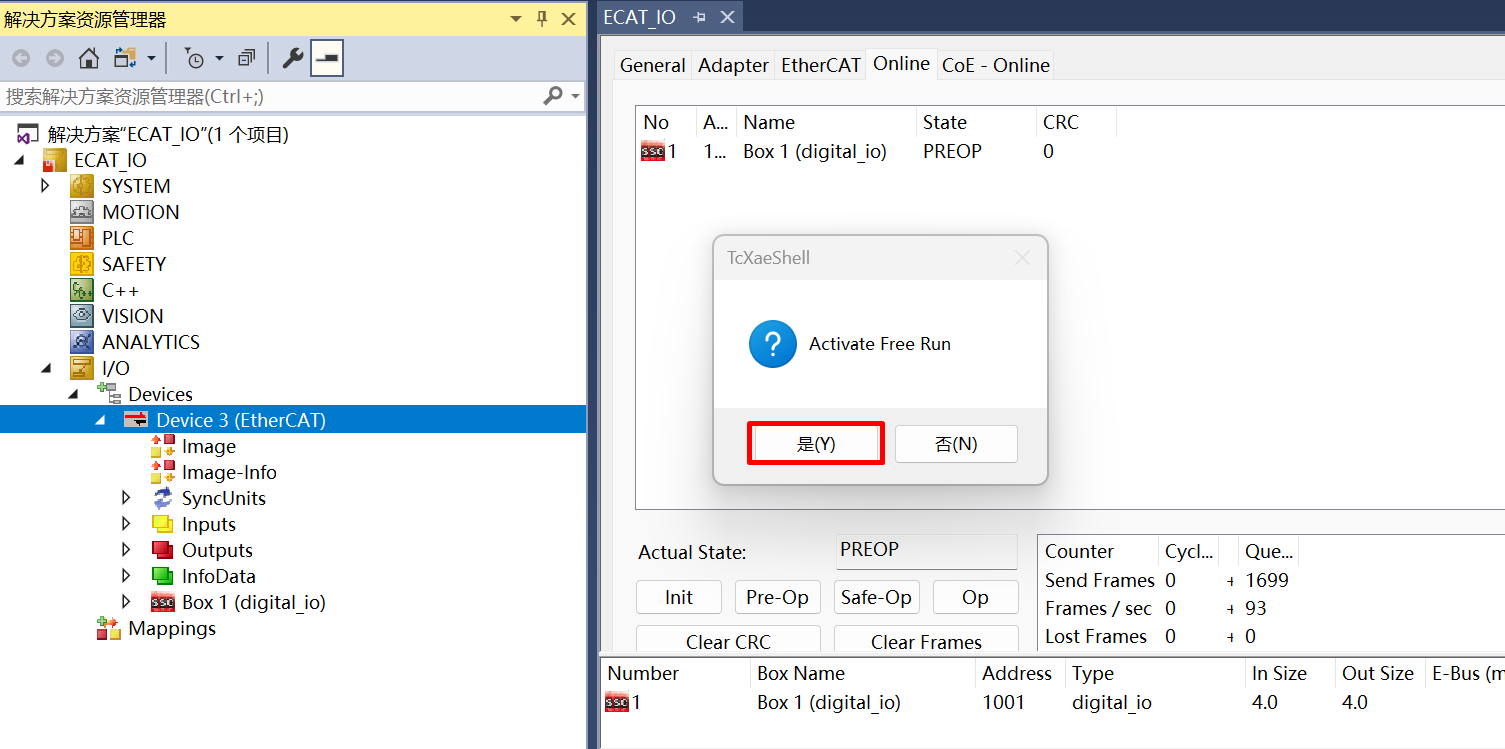

  1. Right click Device, then click Scan

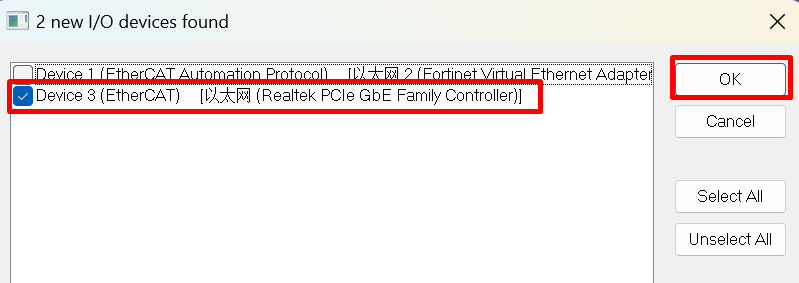

  2. Choose correct network

36.3.5.5. 5.5 Update EEPROM context

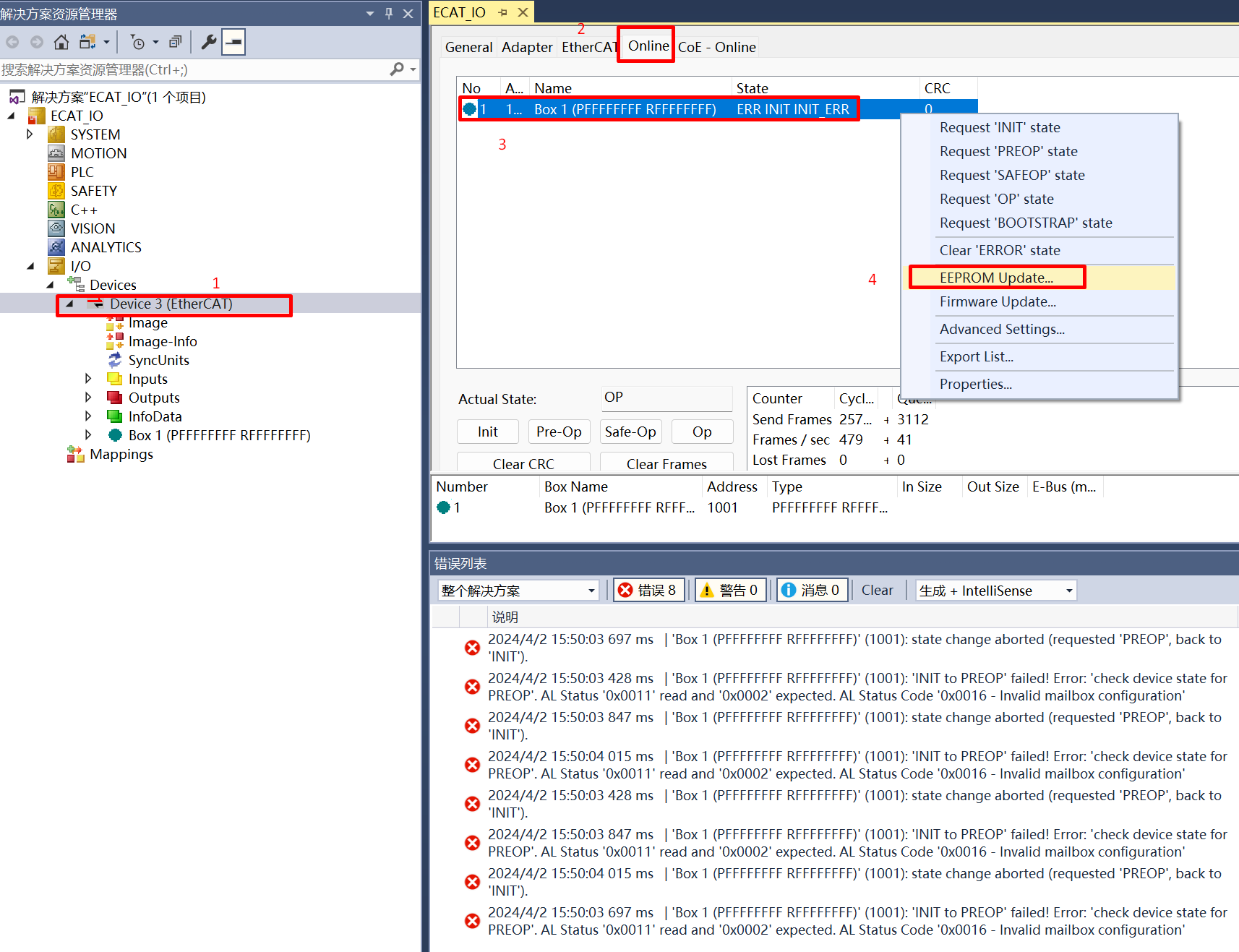

  1. Double click on the scanned device, click Online, right clickBox, then click EEPROM Update。

    For cases where the EEPROM content is empty, it is not possible to find a matching Box when scanning the device. In this case, it is necessary to update the EEPROM content。

    In the case where EEPROM content is empty, When ESC is powered on to load EEPROM data, a checksum error will occur, which will cause PDI to not work. At this time, EtherCAT communication is possible and EEPROM content can be updated through the main station.

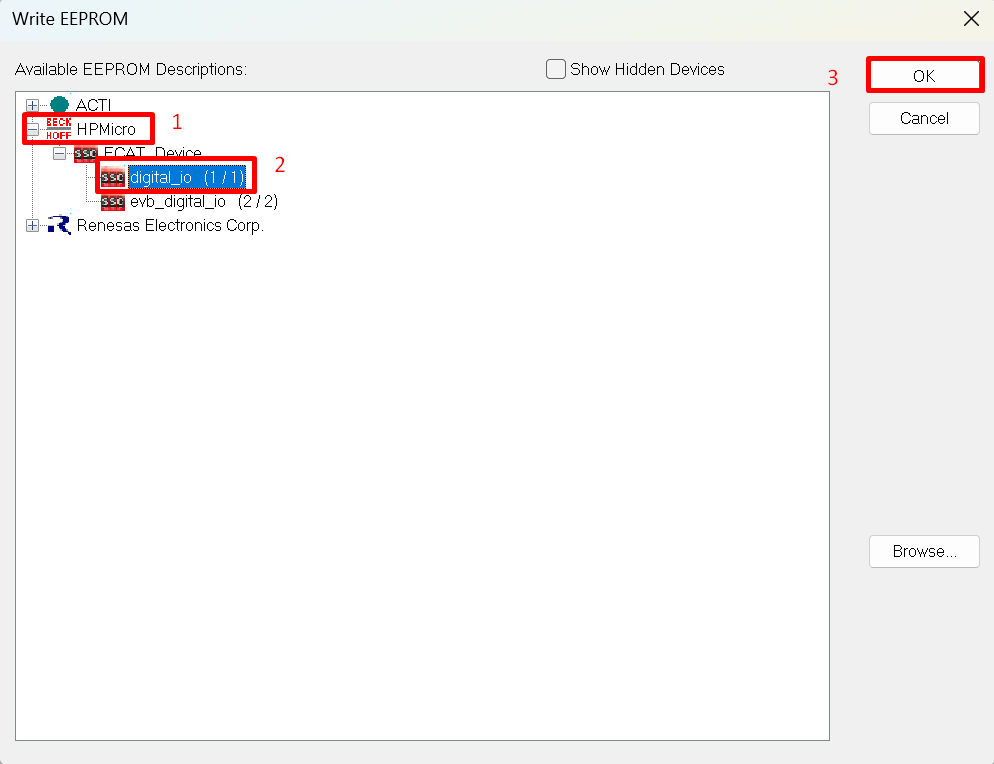

  2. chosse correct files, click OK, wait for completion

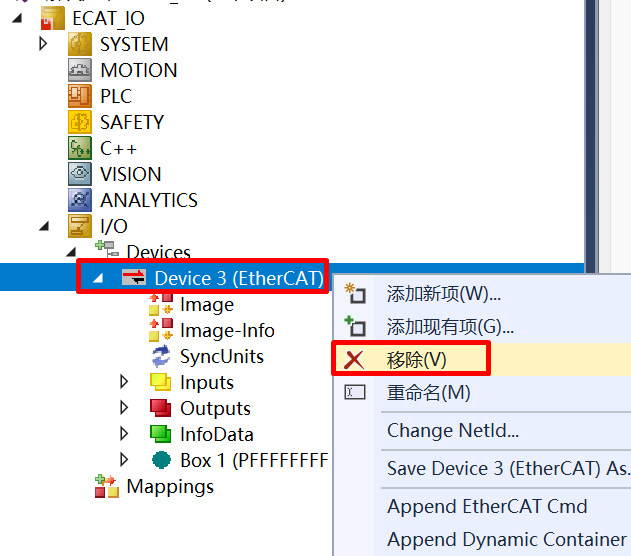

  3. Reset the board, delete the scanned devices and rescanning

36.3.5.6. 5.6 IO Control

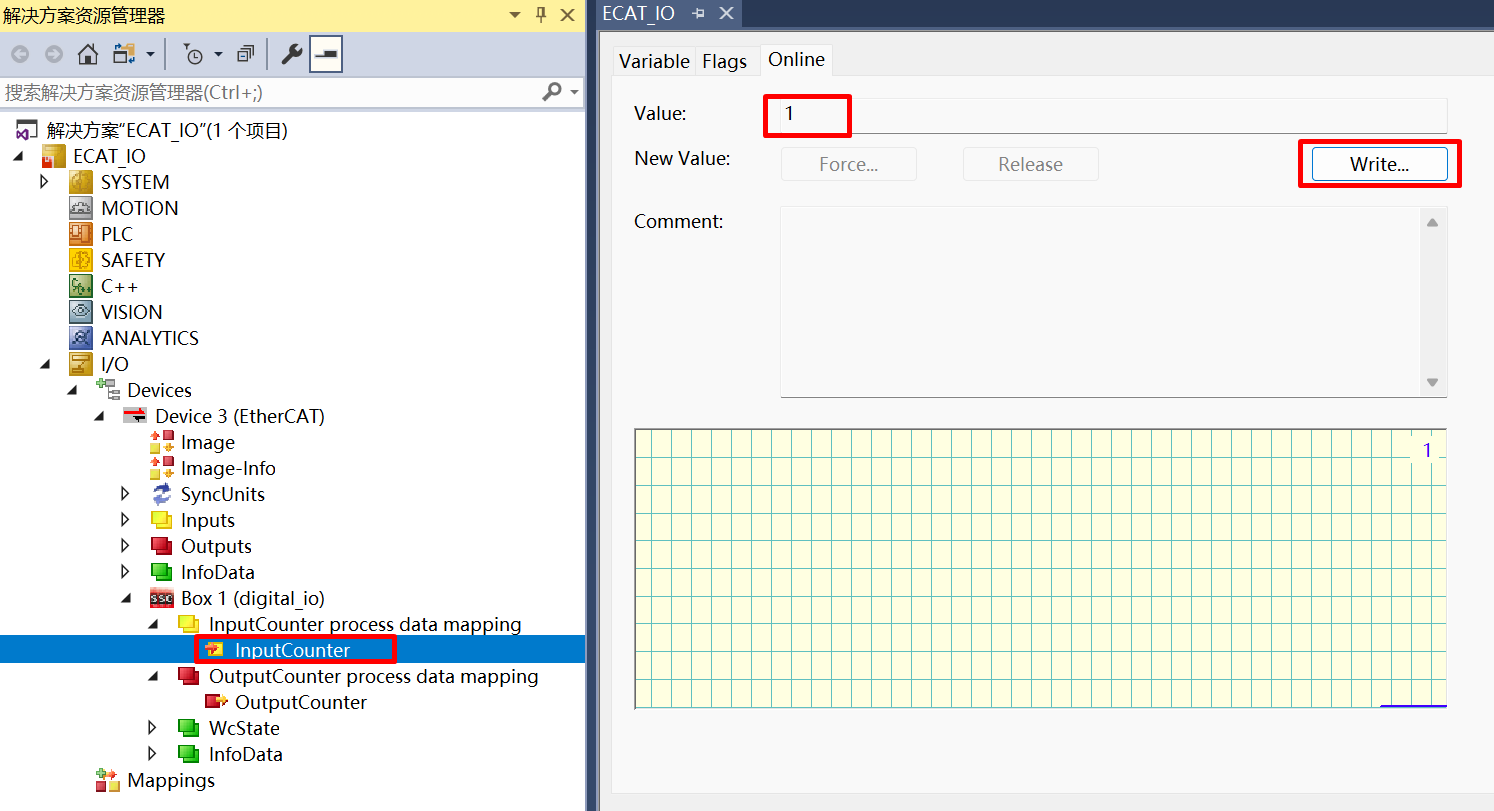

  1. Input IO, change DIP switch, “InputCounter” value change in TwinCAT

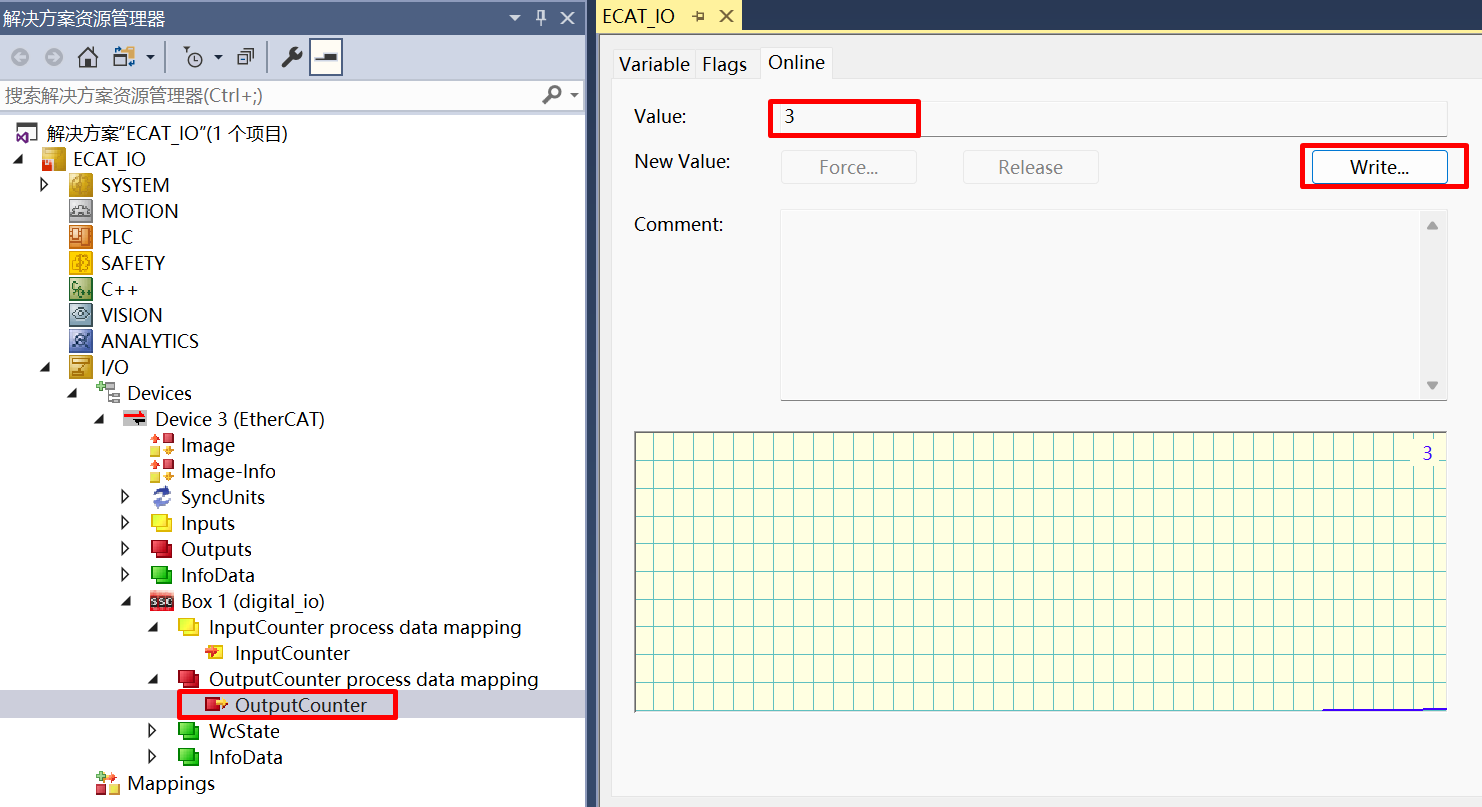

  2. Output IO, write “OutputCounter” value in Twincat, Output LED change

  3. Check RUN LED and ERR_LED status

36.3.5.7. 5.7 DC setting

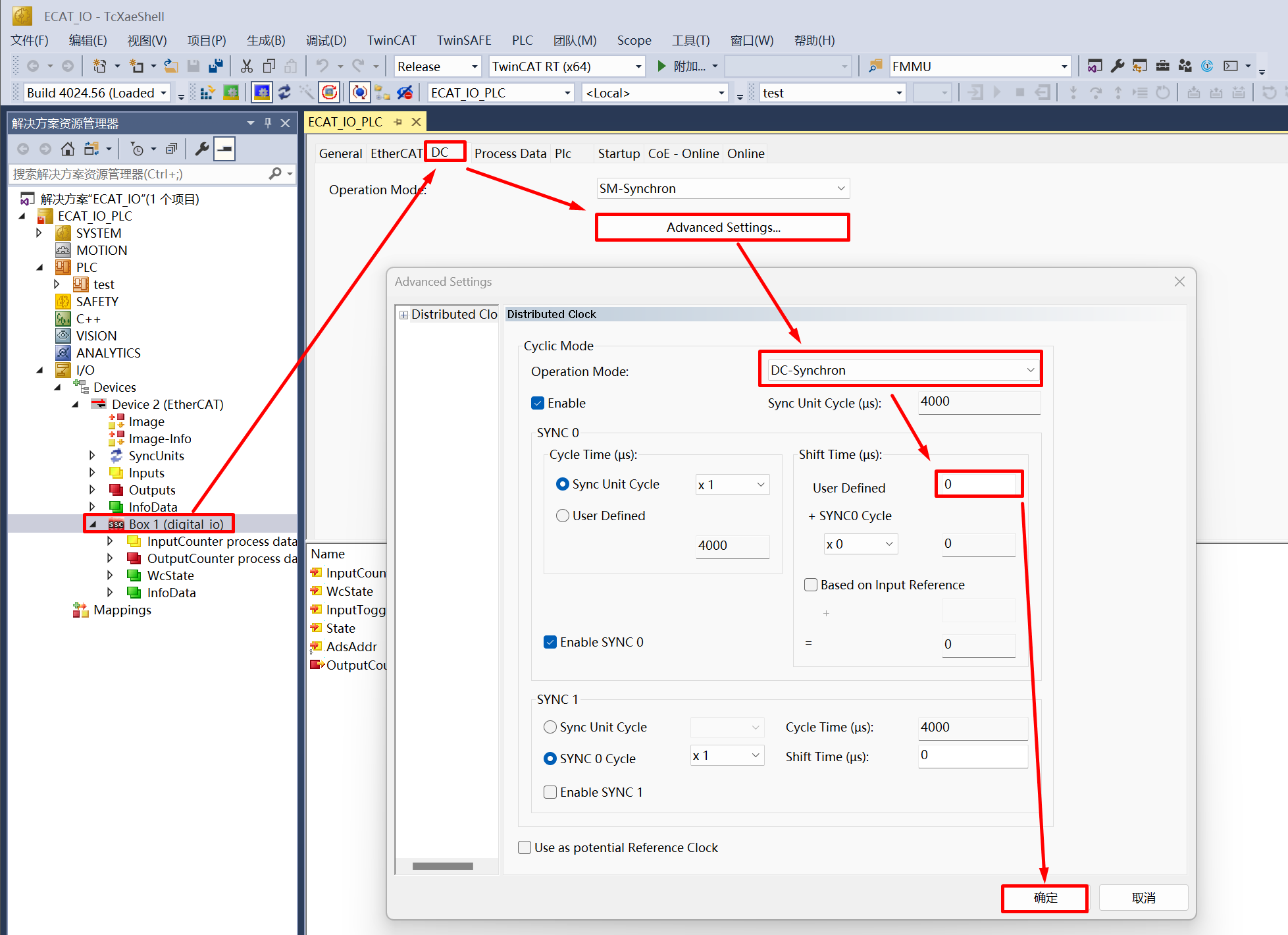

  1. Set the synchronization mode of the slave station, where you can set an individual Shift Time for the slave station (Shift Time is used to ensure that all slave stations receive data from the master station before the DC sync event)

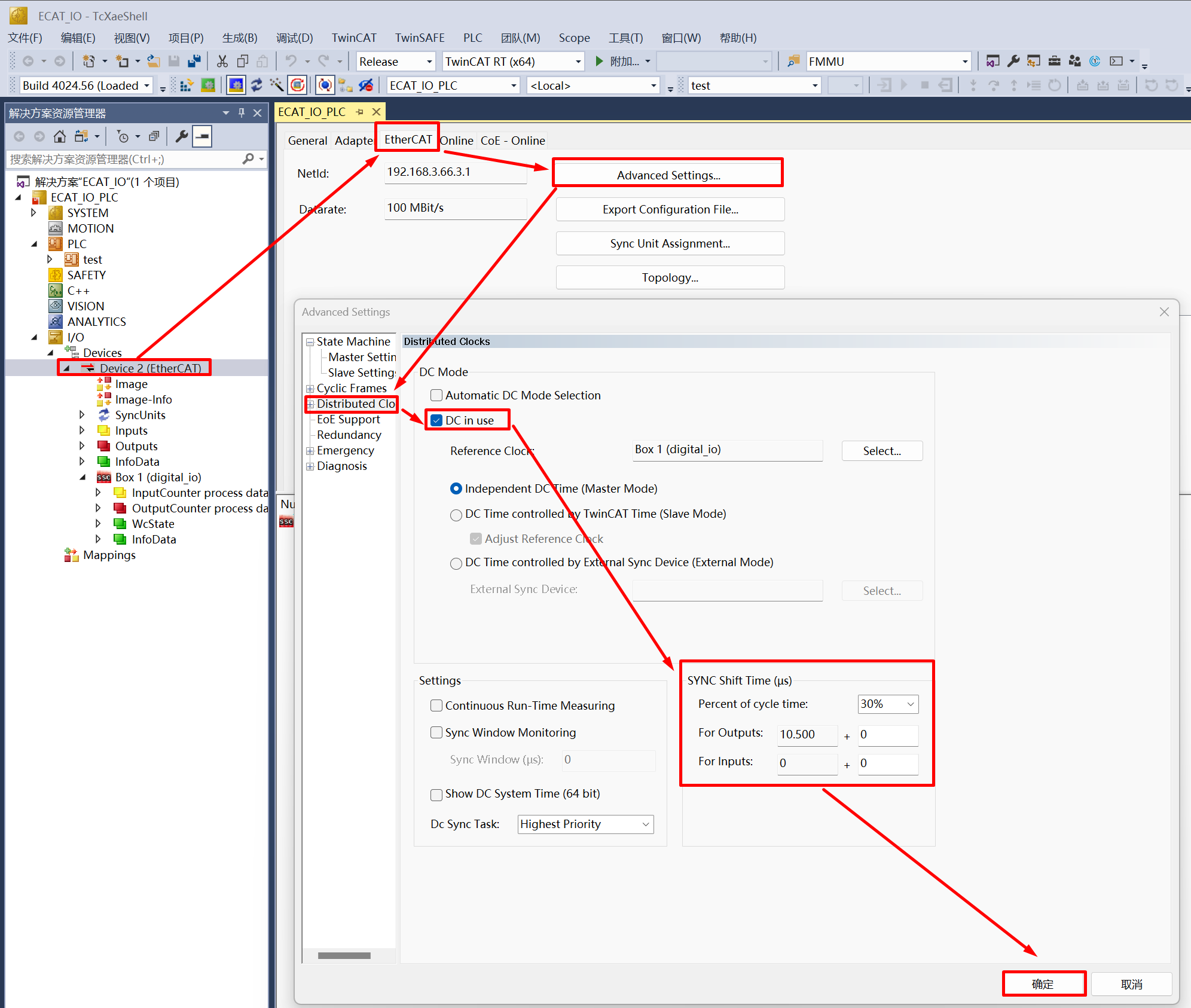

  2. Set the synchronization mode of the master station, through the Sync Shift Time of the master station, you can set the shift time for all DC sync mode slave stations (usually 20%~30% of the Sync Unit Cycle time), Actual Shift Time of a single slave station = Shift Time set by the master station + Shift Time set by the slave station

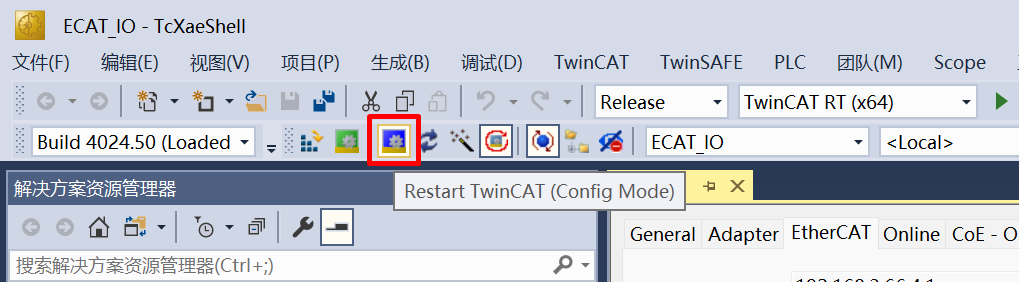

  3. Click Restart TwinCAT (Config Mode), slave stations can enter OP state under DC sync mode. In actual use, tasks should be created in TwinCAT (such as PLC task or NC Task), set the synchronization between slave and master station tasks, activate the configuration, and enter Run Mode to ensure synchronization performance, working under DC sync mode

36.3.6. 6. Running the example

After the project is running correctly, the serial terminal will output the following information, and the input-output IO status corresponds to the TwinCAT project configuration:

EtherCAT IO sample
EEPROM loading with checksum error.
EtherCAT communication is possible even if the EEPROM is blank(checksum error),
but PDI not operational, please update eeprom  context.

or

EtherCAT IO sample
EEPROM loading successful, no checksum error.
