31.7. USB MSC U Disk

31.7.1. Overview

This example project shows access to a U disk (Filesystem format: FAT).

  • A usb host from MCU reads out all of folders and files in the root path of a U disk, and the test result of writing a test file will be output.

31.7.2. Board Setting

  • Connect a USB port on PC to the PWR DEBUG port on the development board with a USB Type-C cable

  • Connect a U disk to one of USB port on the development board with a USB Type-C to USB-A cable

31.7.3. Project Configuration

  • File CMakeLists.txt：

    When BOARD_TUH_RHPORT is defined as 0, it means to use USB0.

    When BOARD_TUH_RHPORT is defined as 1, it means to use USB1.

  • The property of USB host can be configured by “tusb_config.h” or “CMakeListx.txt”

31.7.4. Running the example

When the project runs correctly

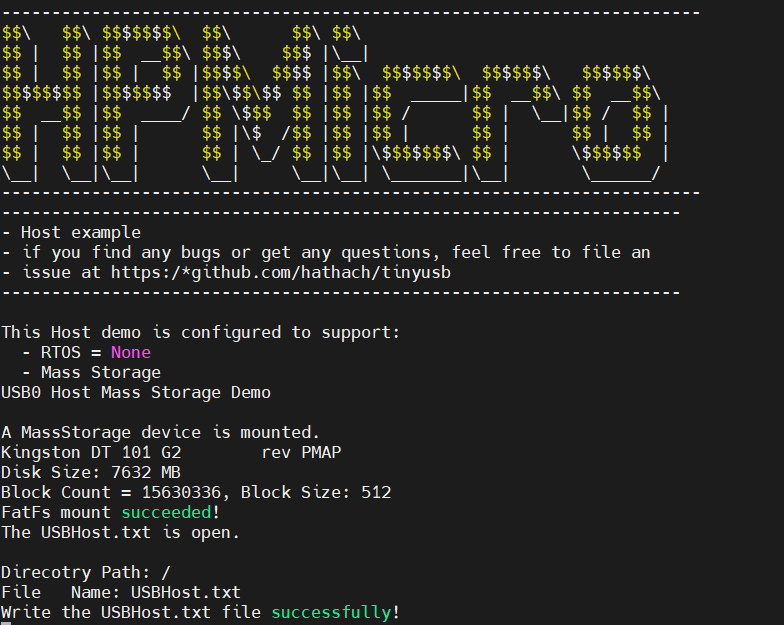

  • View the U disk information and the result of writing a test file
