52.2. QEOV2_PWM_OUT

52.2.1. Overview

QEO_PWM_OUT sample shows QEO generates PWM signals through PWM peripheral according to received postion.

52.2.2. Board Setting

Output PWM signals at the specified pin. （Please refer to Pin Description）

52.2.3. Running the example

When the project runs correctly, the serial port terminal will receive the following information, use oscilloscope/logic analyzer to observe the signal on the pin:

QEO PWM example
QEO generate PWM signal with software inject postion
QEO generate PWM signal with hardware(MTG) provide postion

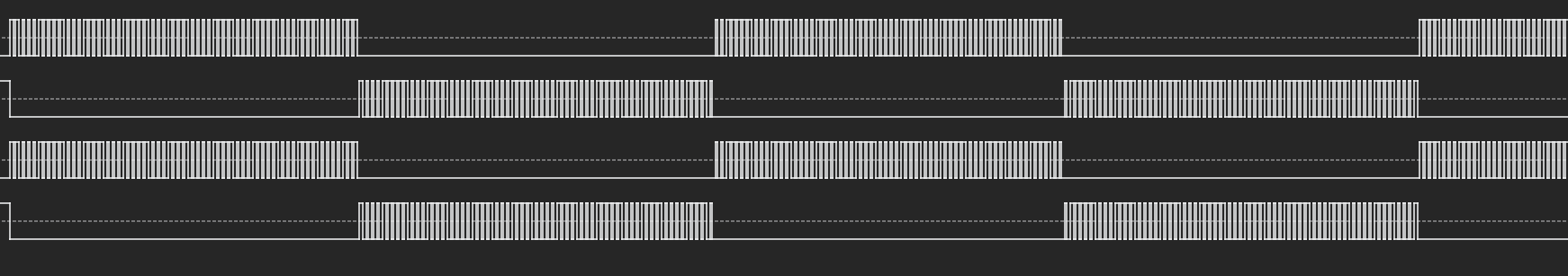

The logic analyzer to observe the PWM signals on the pin
