10.2. HPM6750EVKMINI-TO-Motor Motor Expansion Board

  • Connected with j2 and j3 plug-ins

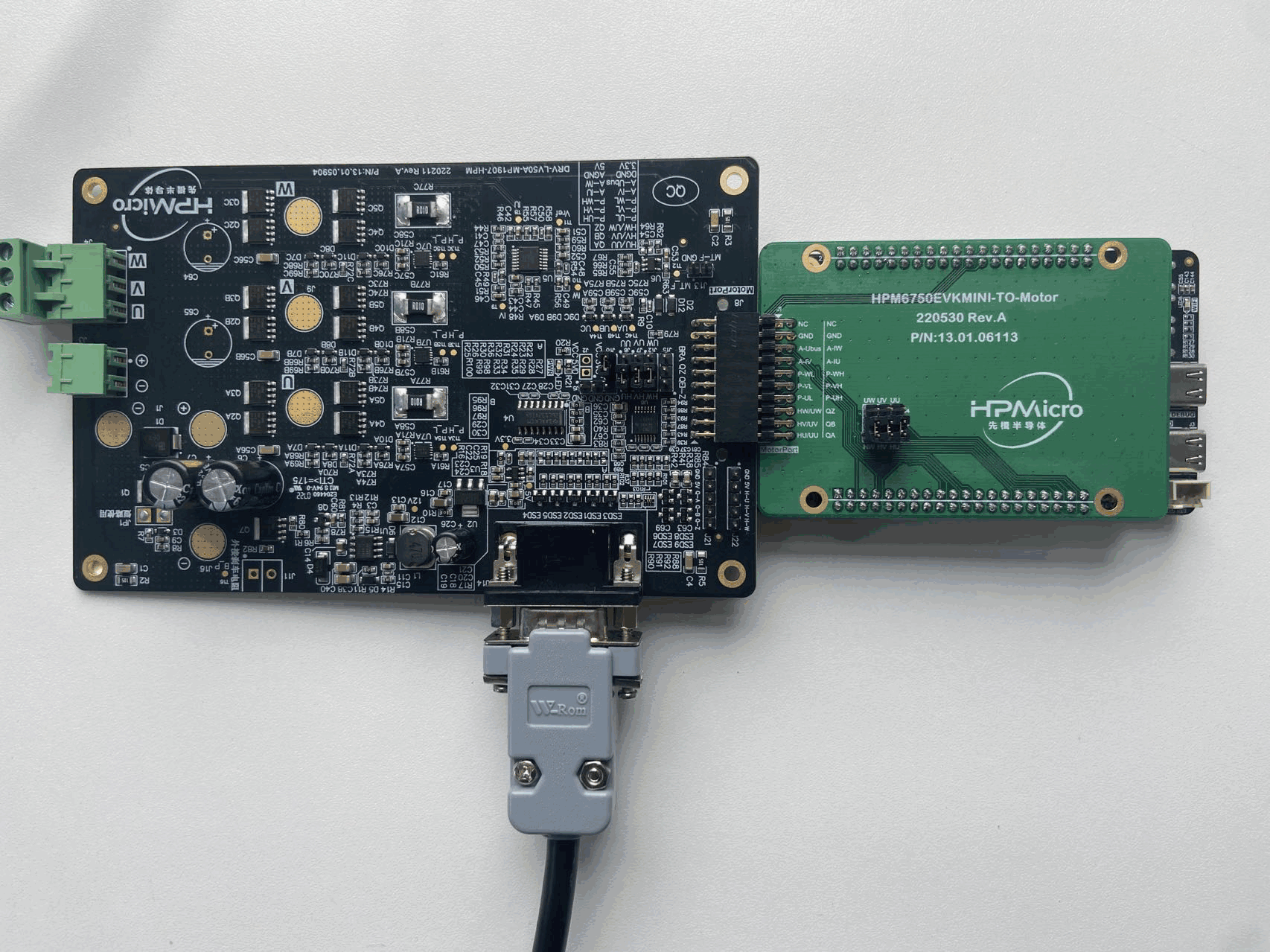

  • The HPM6750EVKMINI-TO-Motor motor expansion board, HPM6750EVKMINI board and DRV-LV50A-MP1907 motor driver board are connected as follows:

    image-2
